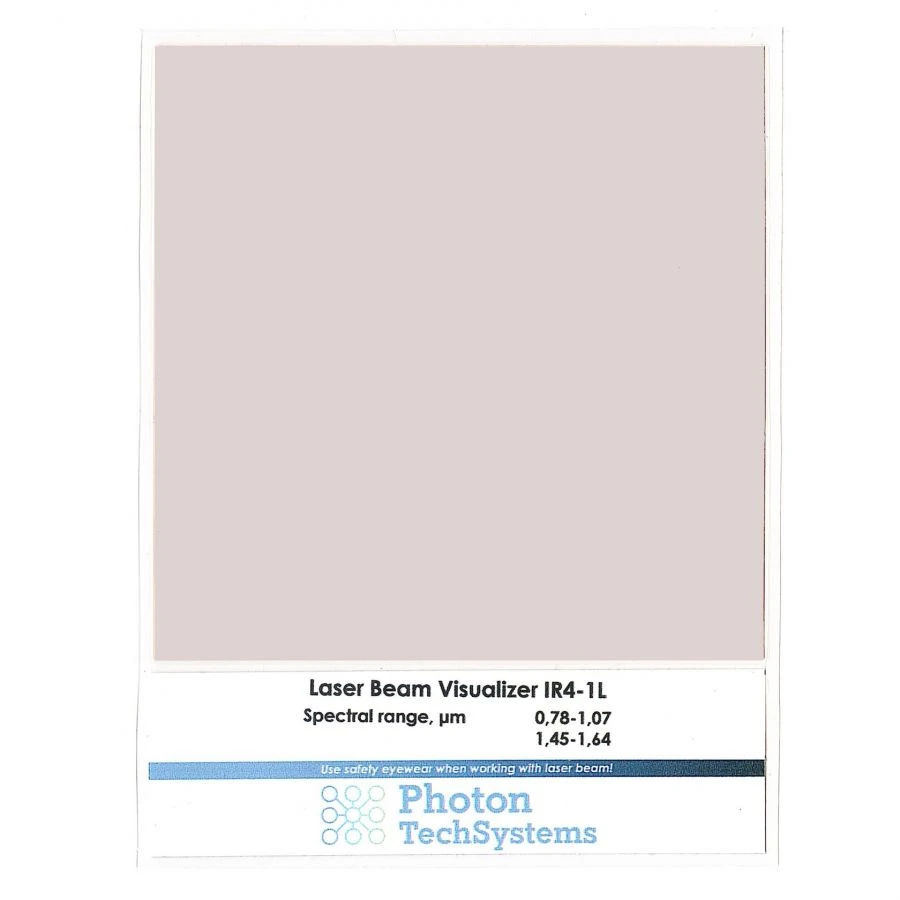

IK4-1L laser visualiser

IK4-L laser radiation visualisers are designed to convert the near infrared radiation of continuous and pulsed lasers into the visible spectral range. It allows visualising laser radiation in the range of 0.78-1.07 and 1.45-1.64 nm, as well as controlling the course of the beam for safe work with the laser. This type of visualiser is a laminated light-converting polymer. Due to the polymer backing, this imager is more resistant to physical damage and moisture. There is a choice of the size of the working area for the customer's needs. Features: the absence of a substrate allows better control of the laser beam and allows additional studies; working ranges of 0.78-1.07 and 1.45-1.64 nm allow to convert IR laser radiation from different sources; high threshold of destruction under laser power up to 2 kW/cm2; not brittle compared to ceramic tablets.
