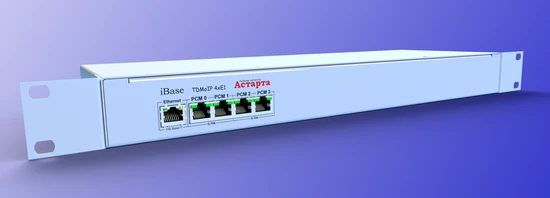

IBase TDMoIP Gateway 4xE1 for Efficient E1 Stream Transmission

Digital Transport Systems

Manufacturer:BLOCK OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

IBase gateway TDMoIP 1xE1.IBase gateway TDMoIP 2xE1.

Description

IBase gateway TDMoIP 4xE1 is designed for transmission of 4x E1 streams via Ethernet packet network. The gateway pair provides transparent transmission of E1 streams with carrier frequency recovery of 2.048 Mbit/s on the slave side. The gateway is adapted to operate in dedicated networks with high speed and reliable packet delivery as well as in the public Internet. Adaptive Jitter-buffer up to 256msec allows to use the gateway on unstable networks. Allows to build networks on the scheme of point-multipoint, star.

Specifications

Supports IPv4 static routing

Armoured glass

Traffic filtering functions intended for the control module

Armoured glass

Supports Auto MDI-X (Auto Medium Dependent Interface Crossover) technology

Armoured glass

Availability of traffic filtering mechanisms on TCP/UDP ports

Armoured glass

Autonegotiation support (autonegotiation)

Armoured glass

Can be installed in a standard telecommunication rack (19 inches wide)

Armoured glass

Number of 100BASE-TX ports (FastEthernet; IEEE 802.3u standard)

1 pcs

Height, U

Cooling type

Passive

Ability to control the device via HTTP protocol

Armoured glass

Number of power supplies

1 pcs

Number of monitored flows

4 pcs

Controlled flow

ITU-T G.703, E1, speed 2.048MBit.

Type of monitored flow E1

G.704, Structured G.703, Unstructured G.703

Power consumption

3...5 W

DC supply voltage

36...72 V

AC supply voltage

220...240 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
