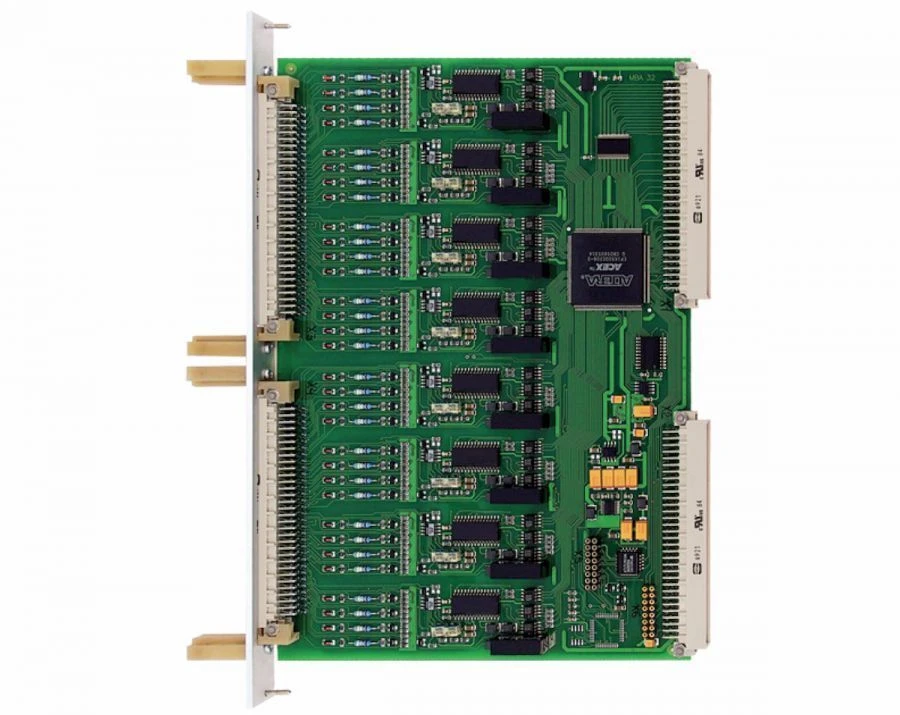

I/O module MVA32

The module is designed for input and conversion of continuous (analogue) signals into digital form and transmission of digital data via VME bus.
The module provides:
- conversion of up to 32 analogue voltage/current signals into 16-bit binary code;
- galvanic isolation between the main part of the module and analogue inputs, as well as between groups of 4 channels;
- VME bus interface - Slave A16, D08/D16.
The module can have versions:
MVA32 - the module has a frequency range of the input signal
for channels 0 - 31 - 0 ... 20 Hz;
???32-1 - the module has a frequency range of the input signal
for channels 0 - 23 - 0 ... 20 Hz and for channels 24 - 31 - 0 ... 400 Hz.
MVA32-2 - frequency range of the input signal
for channels 0 - 31 - 0 ... 20 Hz (without protection of input circuits against short-circuit in sensor circuits).
