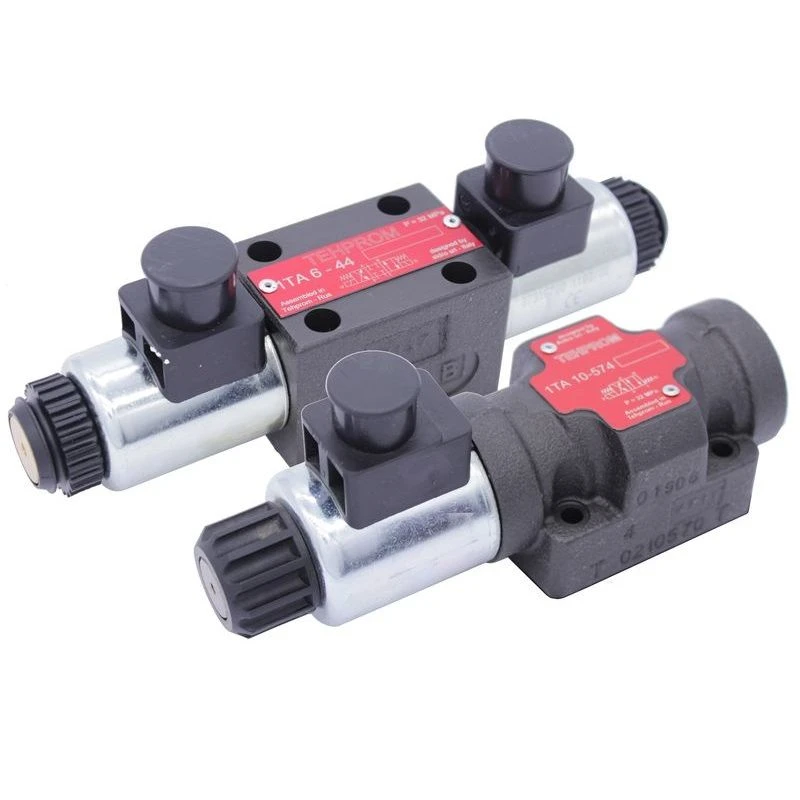

Hydraulic valves with electromagnetic control types 1TA06, 1TA10.
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
1. Purpose: designed to control hydraulic flows in the hydraulic system by means of an electric control signal.
2 Description: The hydraulic valve redirects the working fluid flows.
In general, the directional control valve consists of a body with a spool and one or two electromagnets (depending on the control scheme).
3. technical characteristics/values:
- Maximum working pressure in the hydraulic system, MPa: 32
- Nominal flow rate, l/min: up to 100 l/min
- Response time, ms: : 100 ms
- Protection: IP65
- Supply voltage (V) and frequency (Hz):
-- AC:
- 110 (127) V, 220/50 Hz - 230/60Hz;
-- direct current:
-voltage 24, 110V.
2 Description: The hydraulic valve redirects the working fluid flows.
In general, the directional control valve consists of a body with a spool and one or two electromagnets (depending on the control scheme).
3. technical characteristics/values:
- Maximum working pressure in the hydraulic system, MPa: 32
- Nominal flow rate, l/min: up to 100 l/min
- Response time, ms: : 100 ms
- Protection: IP65
- Supply voltage (V) and frequency (Hz):
-- AC:
- 110 (127) V, 220/50 Hz - 230/60Hz;
-- direct current:
-voltage 24, 110V.
Specifications
Type
1TA06, 1TA10
Maximum working pressure in the hydraulic system, MPa:
32 MPa
Nominal flow rate, l/min: up to
100
Tripping time, ms
100
Protection
IP65
Supply voltage (V) and frequency (Hz): -- alternating current; -- direct current
- alternating current: voltage 110 (127) V, 220/50 Hz - 230/60 Hz; - direct current: voltage 24, 110 V
