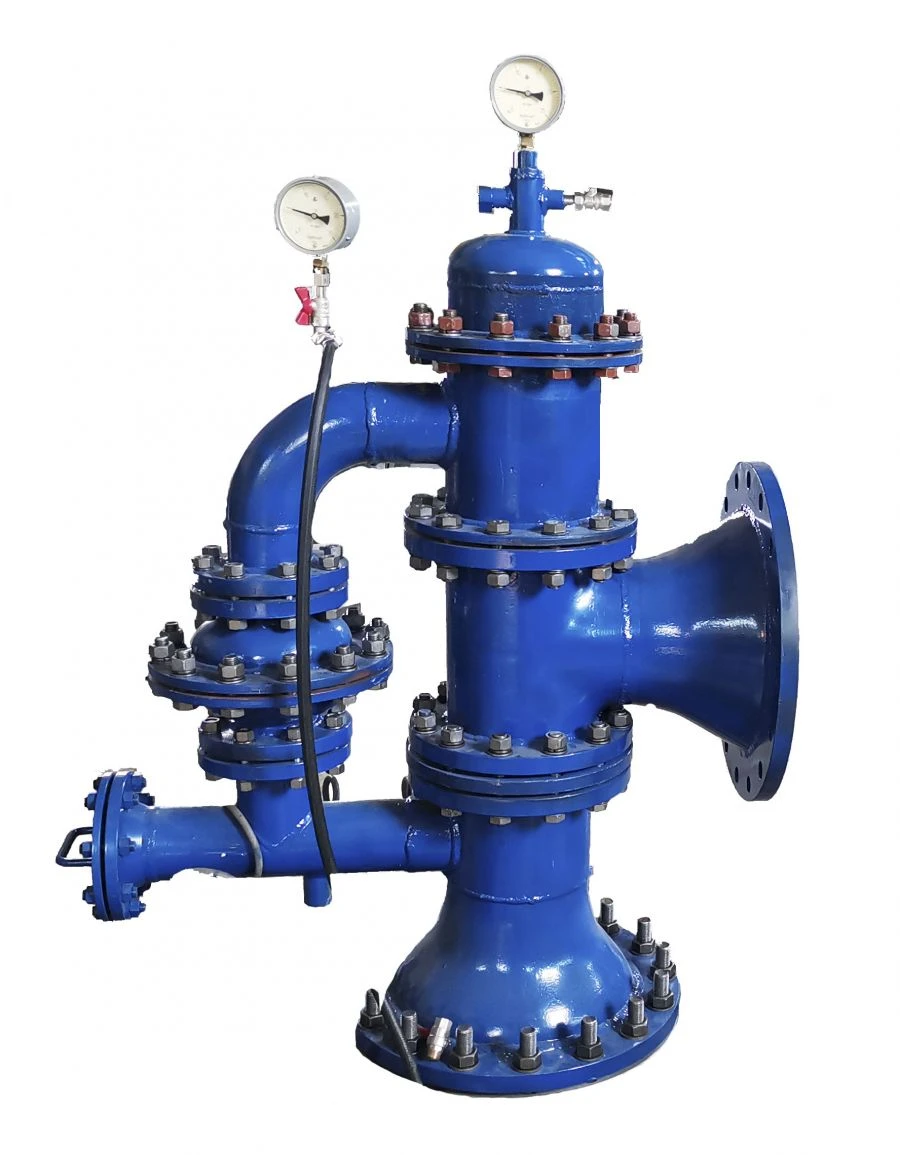

Hydraulic shock compensator (pressure stabiliser) SD350-16

Purpose: compensator - pressure stabiliser (water hammer damper). The device guarantees the prevention of hydrostroke development in long pipeline lines up to 1,6 MPa.
Description: the compensator is a predictive device with a comparison unit and feedback on the diaphragm position. There is no lag, so pressure surges are excluded.
Application: in public utilities and industrial water supply and heating systems. For sewer pressure systems, version with index (K).
Technical characteristics: connection DN - 350 mm; discharge DN -350, pipeline diameter up to 1200 mm, setting pressure: up to 1,6 MPa, material steel.
