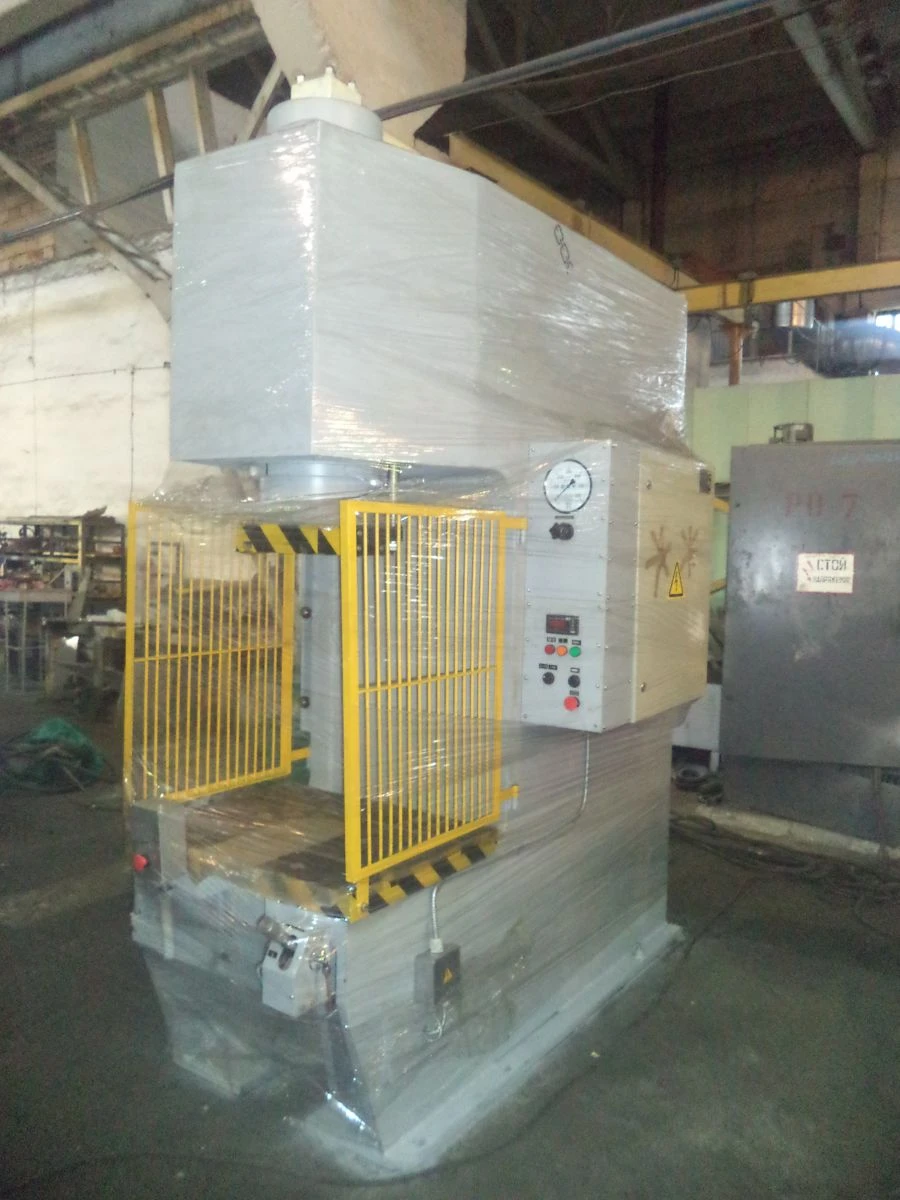

Hydraulic press with C-shaped bed PB6330

The equipment belongs to the category of forging equipment and is a unique installation. The most common application is forging parts from billets. But in order to better understand the capabilities of the hydraulic press, let us give examples of other types of processing: calibration, piercing, pressing, straightening, sheet forging, drawing, bending.
Design features:

The C-shaped press bed allows access to the working area from three sides (front, left and right), which significantly expands the range of tasks performed on this type of presses, and also makes the replacement of special tools, jigs, dies, etc. more ergonomic.

The hydraulic cylinder of the press is piston-type, with an additional forcing cavity and a filling valve, which ensures high speeds of tool approach to the workpiece and return to the starting position. At the same time, this design significantly reduces energy costs and the level of heat load of the hydraulic system, as filling and release from the work ...
