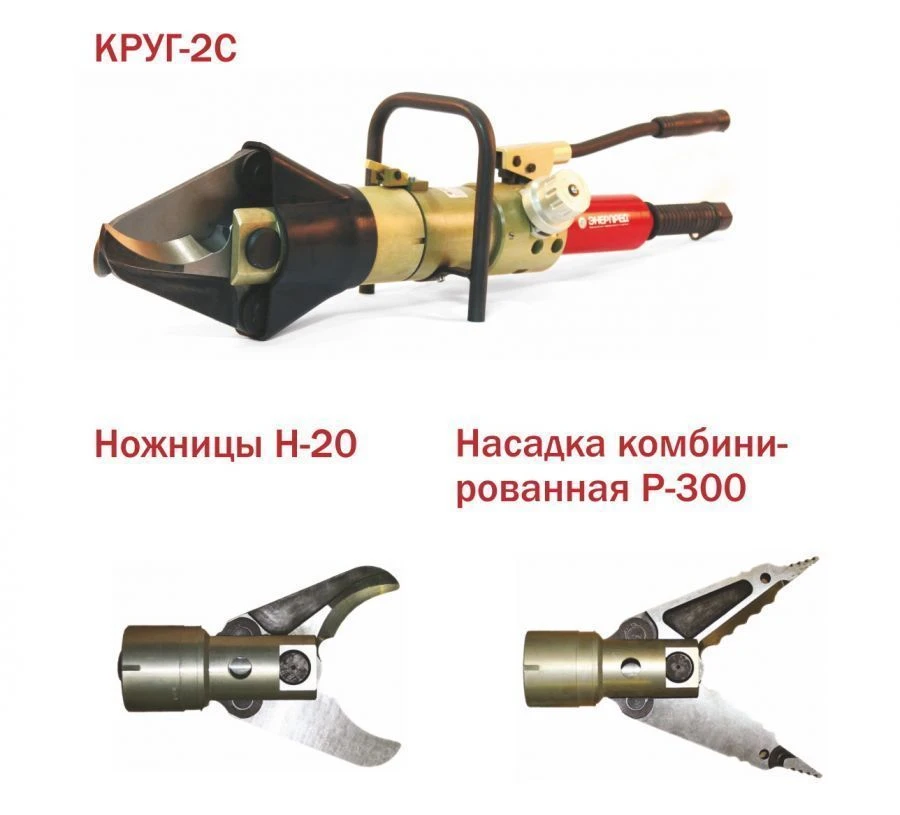

Hydraulic hand tool: hydraulic universal hand set, model KRUG-2C

The set is used for operative performance of various works in hard-to-reach places, in emergency situations, it is completed with two quick-change nozzles: R-300 - for sliding, lifting of objects; H-20 - for cutting.
Overall dimensions (with shear nozzle / with combined nozzle), (BxLxH), mm - 191?834?222/191?921?230.
Weight, not more, kg
with scissors attachment - 14,4
with combined nozzle - 15.6
total - 21.9
Number of fixed positions of nozzles - 4
Power module KRUG-2
Nominal pressure, MPa (kgf/cm²): 70 (714)
Working fluid:
MGE-10A OST 38 01281
AMG-10 GOST 6794
Hydraulic fluid volume, cm³: 230
Force on the handle, max, kgf: 35
Capacity, cm³/stroke:
1 stage - 9,3
2 stages - 1,27
Overall dimensions (BxLxH), mm: 191x55x222
Weight, not more, kg: 8,1

Combination nozzle R-300
Allows moving, sliding and lifting various objects with insignificant clearance me.
