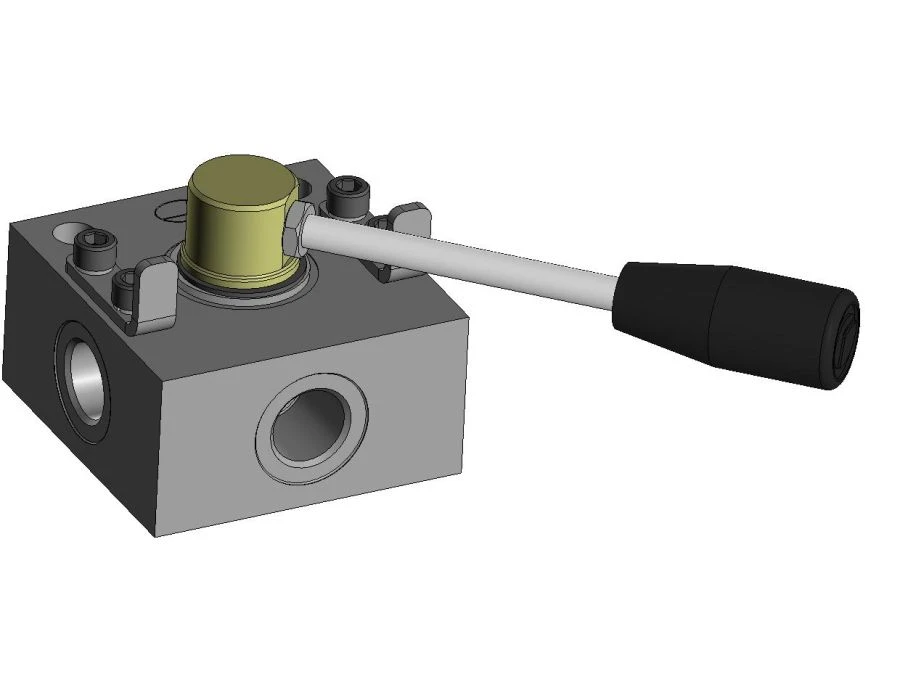

Hydraulic directional control valve (Diverter) ?1??90/4?00?03

The directional hydraulic valve (diverter) refers to directional hydraulic devices and is designed to change the direction of movement or start and stop the flow of fluid in two or more lines of a hydraulic drive or system by fully opening or closing the passage section depending on the presence of external control action. In this case, the pressure and flow rate of liquid at the inlet and outlet of the device practically do not change.Field of application - hydraulic drives of presses, machine tools, foundry and casting machines, mobile special machinery and other hydroficated equipment. Diverter ?1??90/4??00?03 with nominal flow rate of 90 l/min and maximum pressure of 350 bar of threaded mounting with manual switching.
