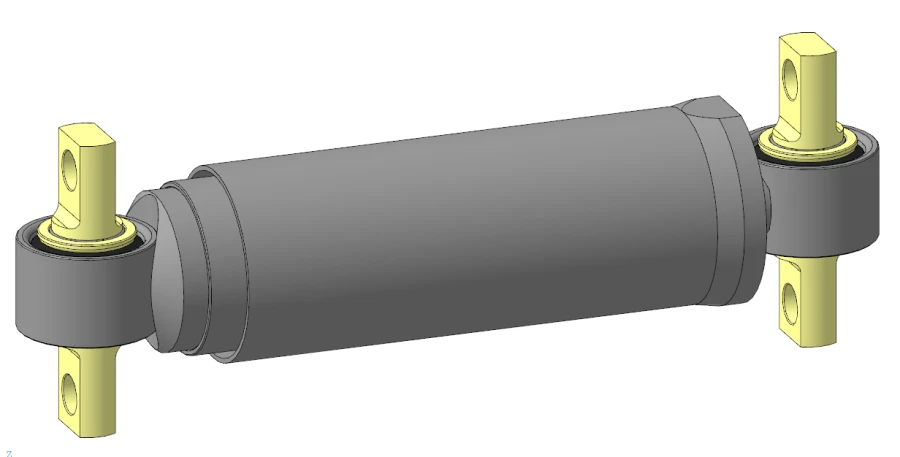

Hydraulic damper UGD 210/2950/2950/01 Available for Import

Hydraulic damper UGD 2102950295001 B2B Supply

Railway Vehicle Parts
Manufacturer: OKVEY LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Hydraulic Damper UGD 150/1000/1000/01 for Suspension Systems

Description

Hydraulic dampers are designed for installation on rolling stock in the bogie spring suspension system in order to ensure standardised indicators of smooth running and impact on the railway track.

Specifications

Type of product according to PP RF 616
Locomotives
Dimension between trunnion centers in compressed position
381 mm
Dimension between trunnion centers in tensile position
591 mm
Dimension between holes in trunnions for mounting bolts
108 mm
Diameter of the hole in the trunnion for the mounting bolts
14 mm
Outer diameter of the casing
84 mm
Total weight, not less
8.8 kg
Full piston stroke
210 mm
Outer diameter of the housing
74 mm
