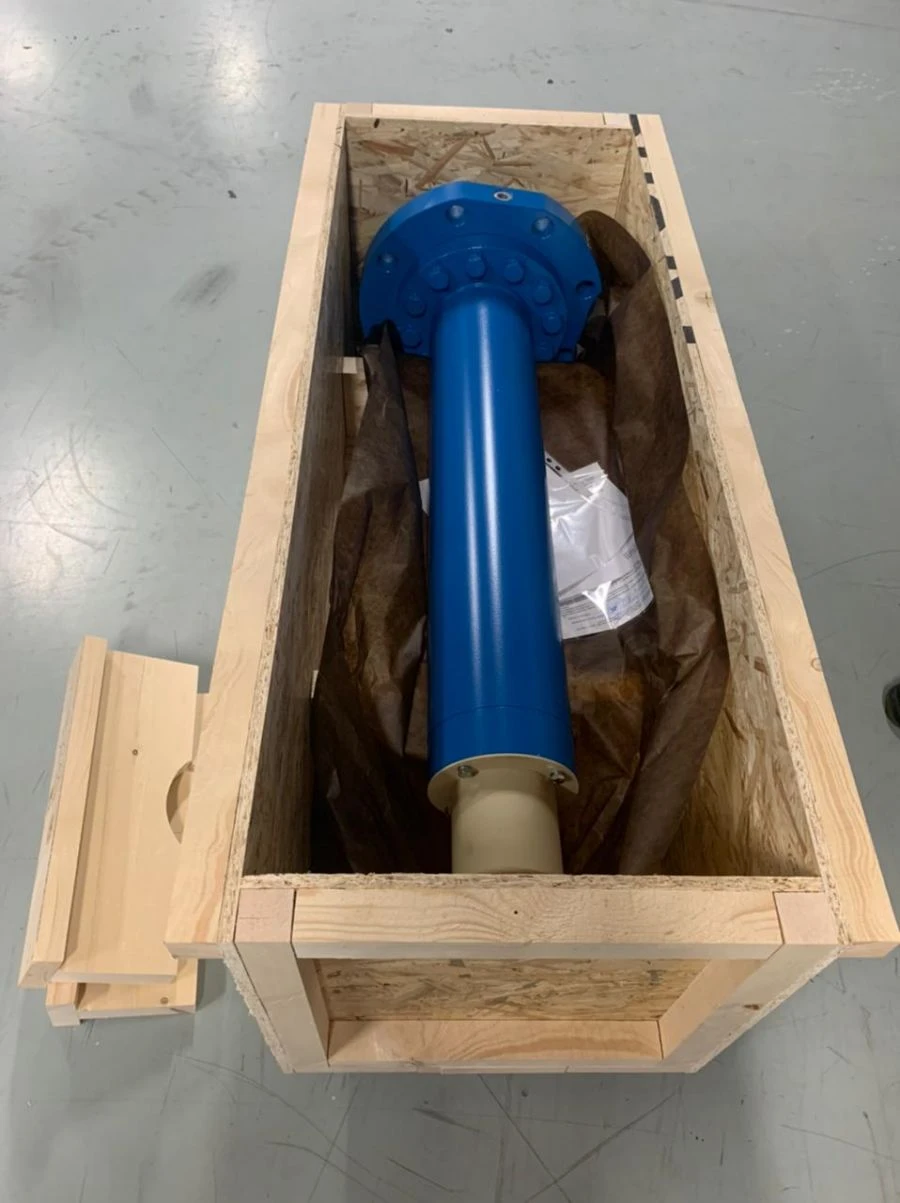

Hydraulic Cylinders with Pressure 25MPa Nominal, 32MPa Maximum

Available for Import

Hydraulic Cylinders with 25MPa Nominal Pressure for Remote Control Applications

Hydraulic Cylinders

Manufacturer: TECHPROM-NGS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Purpose: remote control of mechanisms by means of oil flow energy conversion into energy of output link motion.
Description: volumetric reciprocating hydraulic machine consisting of a movable link - rod (plunger) and a body - sleeve.
technical characteristics/value:

- piston stroke, mm - 30...4900;
nominal pressure, MPa, - 25;
maximum pressure, MPa, - 32;
nominal pushing force, kN - up to 2100;
nominal pulling force, kN - 1250;
tightness class according to GOST 16514 - A;
total efficiency factor, not less than - 0,96;
climatic execution, according to GOST 15150, - UHL 1, XL 1;
mass, kg - 20...1500.

Specifications

Piston stroke, mm

30...4900 mm

Nominal pressure, MPa

25 MPa

Maximum pressure, MPa

32 MPa

Rated pushing force, kN, to

2100

Rated pulling force, kN

1250

Tightness class according to GOST 16514

Total efficiency, not less than

0.96

Climatic version, according to GOST 15150

UXL 1, HL 1

Weight, kg:

20...1500 kg

Assignment

Purpose: remote control of mechanisms by converting the energy of oil flow into the energy of output link motion.
