Hydraulic cylinder GTs 70/40x640.4.11.2.000

Hydraulic Cylinders

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

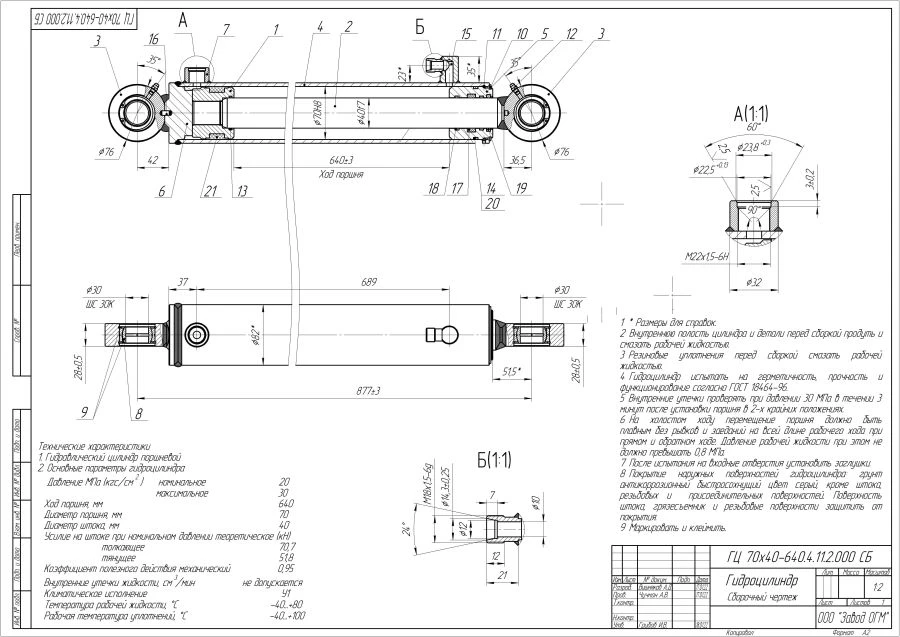

Technical characteristics 1. Hydraulic cylinder piston 2. Main parameters of the hydraulic cylinder Pressure MPa (kgf/cm )nominal 20 maximum 30 Stroke of the piston, mm 640 Diameter of the piston, mm 70 Diameter of the rod, mm 40 Force on the rod at nominal pressure theoretical (kN) pushing 70.7 pulling 51.8 Efficiency factor mechanical 0.95 Internal leakage of liquid, cm/min is not allowed Climatic design U1 Working fluid temperature, C -40. ...+80 Working temperature of seals, C -40....+80 Working temperature of seals, ? -40...+100

Specifications

Pressure

20...30 MPa

Hydraulic cylinder stroke

640 mm

Sleeve diameter

70 mm

Stem diameter

40 mm

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
