Available for Import

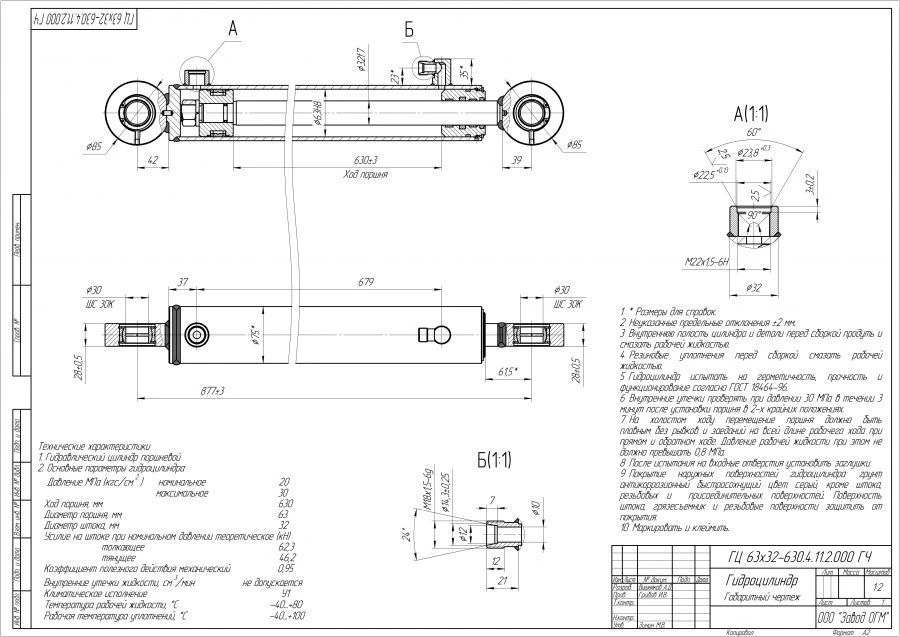

Hydraulic cylinder GC 63x32-630.4.11.2.000
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
2. Main parameters of hydraulic cylinder
Pressure MPa (kgf/cm ) nominal 20
maximum 30
Piston stroke, mm 630
Piston diameter, mm 63
Piston rod diameter, mm 32
Theoretical force on the rod at nominal pressure (kN)
pushing 62.3
pulling 46.2
Mechanical efficiency 0.95
Internal leakage of liquid, cm/min is not allowed
Climatic design U1
Working fluid temperature, ? -40...+80
Working temperature of seals, ? -40...+100
Technical Specifications
| Assignment | ?? 63?32-630.4.11.2.000 |
|---|---|
| Stem diameter | 32 mm |
| Type | ?? 63?32-630.4.11.2.000 |
| Hydraulic cylinder stroke | 630 mm |
| Diameter | 63 mm |
| Pressure | 20...30 MPa |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Shipping & Payment Information
Shipping Terms
- FOB: Novorossiysk, Russia
- CIF: Available to major ports worldwide
- EXW: Manufacturer's facility, Russia
Delivery Time
- Sea freight: 30-60 days (depending on destination)
- Air freight: 14-21 days (for urgent orders)
- Production lead time: 30-90 days (depending on order size)
Payment Methods
- Letter of Credit (L/C)
- Wire Transfer (T/T)
- Escrow Services
Order Minimums
- We work with orders starting from 1 container
- You can mix different products in one container
- Volume discounts available for larger orders
Customs & Documentation Support
We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
Contact Our Import Specialists
WhatsApp (Recommended)
For fastest response and immediate assistance with pricing, availability, and ordering.
+971 58 657 4796For detailed inquiries, documentation requests, and formal communications.
Send Email Inquiry info@tonzar.comRequest Call Back
Schedule a consultation with our import specialists at your convenience.
Business Hours
We're available to assist you during the following hours:
- Monday - Friday: 9:00 AM - 6:00 PM (GMT+4)
- Saturday: 10:00 AM - 2:00 PM (GMT+4)
- Sunday: Closed
Our WhatsApp support is available outside business hours for urgent inquiries.
