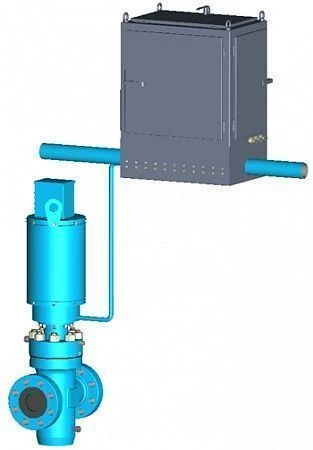

Hydraulic control systems of GCS type

It is used to control a hydraulically operated gate valve. In automatic mode monitors the pressure in the pipeline and in case of emergency increase or decrease of pressure automatically closes the gate valve with hydraulic drive. automatically closes the gate valve in case of fire remotely closes the gate valve on command from a remote control panel closes the gate valve on command from the remote control panel located at the control centre Ambient temperature: -60 ... +60°?. Key benefits: no power supply required the presence of a hydraulic accumulator allows the system to operate reliably at large temperature differences block-modular design ensures a minimum number of connections to hydraulic pipes the use of vandal-proof casing ensures the safety of the product the possibility of installation directly on the pipeline provides autonomous heating, which increases the reliability of the system
