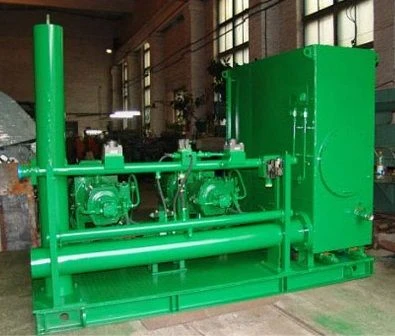

Hydraulic Accumulator Stations based on Universal Hydraulic Modules IPK for Reliable Power Supply

Purpose: Hydraulic power supply sources on the basis of universal "hydraulic modules" IPK are designed for groups of machines and mechanisms with probabilistic flow cyclogram. Description: The IPK - "Hydraulic Module" - is a pump and accumulator with a predictive flow controller. The "open architecture principle" allows to complete hydraulic power supply sources for any tasks with the help of hydraulic modules IPK.Application: Shop hydraulic power supply sources for groups of presses, electric arc furnaces, rolling mills, automatic hydroficated lines.

Technical characteristics:Working pressure up to 32 MPa (320 kgf/cm2) Instantaneous automatic supply according to the required flow rate at constant working pressure from 0 to 375 l/min. Frequency range of switching up to 30 Hz .Manoeuvring volume of hydraulic accumulator 0,7 litres.Volume of gas accumulator - 10 litres.
