Available for Import

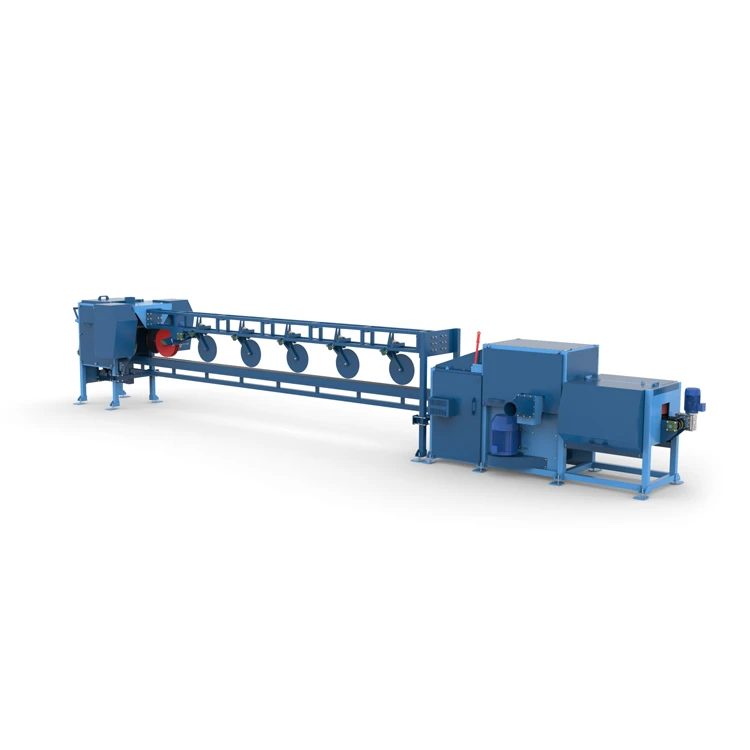

Hump line, model: "GL-500"

Woodworking Saw Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

GL-500 is used for cutting hump logs up to 500 mm wide and dividing it into 1-3 boards up to 170 mm wide. This increases the efficiency and the amount of useful output of the sawmill line.Advantages
- Fast, software-controlled change of the width of the received board
- Sawing speed up to 60 m/min
- Optimum rotation speed of the saw blades
- Maximum material utilisation (high useful output)
- Automatic shear separation on the edger
- High safety margin of the line components
- Humps are fed into the sawing zone by a chain conveyor and held on it by drive ripples providing powerful pulling of the workpiece and high sawing speed.
- The two-shaft sawing system of the splitting machine allows the use of thinner saw blades.

Technical Specifications

Type of product according to PP RF 616	Specialized equipment for woodworking
The largest cross-sectional dimension of the hump log to be sawn (at the butt).	500?160 mm
Smallest cross-sectional size of the hump section to be sawn (at the top)	100?30 mm
Maximum hump length	6.2 m
Minimum length of hump logs to be sawn	2 m
Minimum width of the resulting board	80 mm
Maximum width of the received board	170 mm
Rotational speed of saw shafts of edging machine	2950
Diameter of saw blades of the edger	500 mm
Rotational speed of saw shafts of dividing machine	3800
Diameter of the saws of the dividing machine	350 mm
Maximum number of kerfs of the dividing machine	3 pc
Feed rate (inverter adjustment)	3600
Machine dimensions, length	12200 mm
Machine dimensions, width	22000 mm
Machine dimensions, height	2100 mm
Weight of line	6200 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
