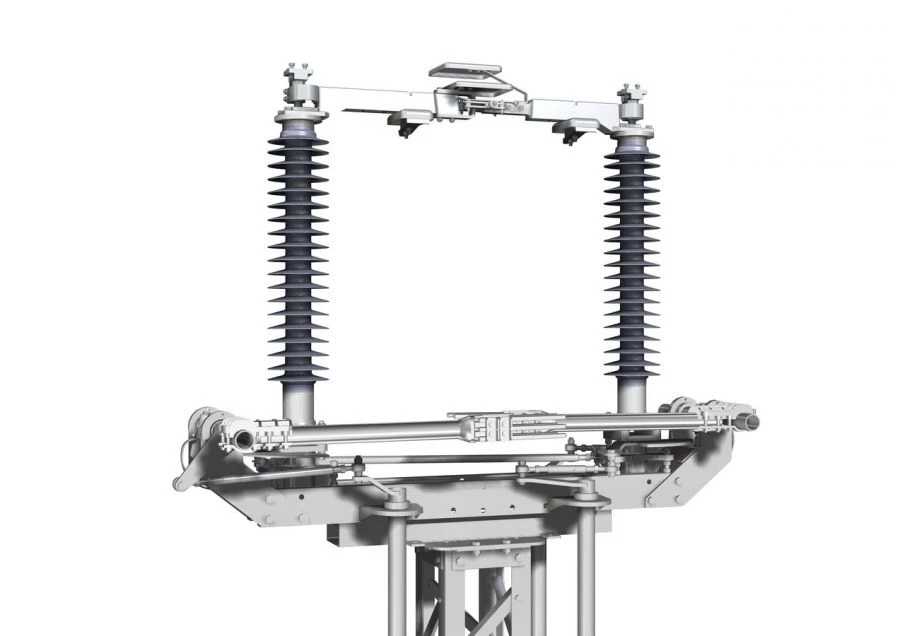

Horizontal Rotary Disconnect Switch RG Series 110 kV for Safe Power Isolation

Disconnectors are intended for switching on and switching off de-energised sections of electric circuits under voltage, as well as earthing of disconnected sections by means of earthing switches.
RG - horizontal-swivelling disconnector
H - with normal insulation level
P - polymer external insulation
OP - single pole version
V - vertical installation
SK - stepped keel installation
K - keel installation
Rated voltage - 110 kV
Rated current - 1000 (2000, 3150, 4000) A
Rated short-time withstand current - 40 (50, 63) kA
Highest peak of rated withstand current - 100 (125, 160) kA
Three- and single-pole version
Climatic execution according to GOST 15150 - UHL
Placement category - 1
