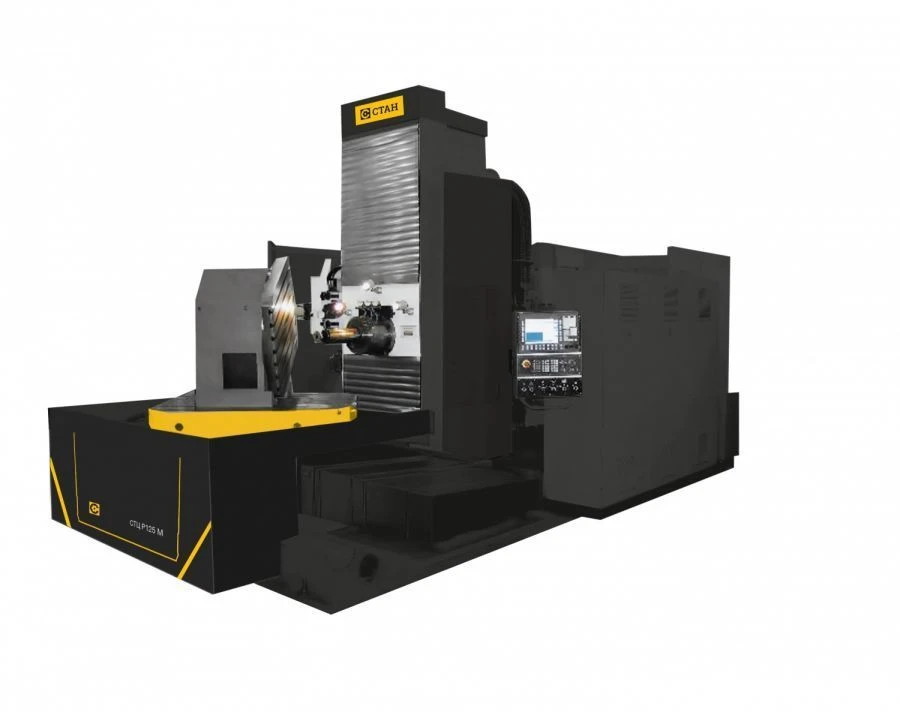

Horizontal Machining Center STC N 125M (IS1250PMF4)

Available for Import

Horizontal Machining Center STC N 125M for High-Speed Processing

Metal Machining Centres

Manufacturer: ISZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Horizontal milling machining centre model STC H 125M (IS1250PMF4) is designed for high-speed machining of complex surfaces of large-sized parts made of cast iron, steel, aluminium and other metals. The machines are equipped with preloaded roller guideways providing the speed of movement of units up to 15 m/min.
The machine is made on the basis of the machine model IR1250, with a deep elaboration of nodes, with the following design changes: increasing the rigidity of base parts, equipping the machine with spiral conveyors of chips on the X and W axes, the use of double-slope telescopic protection on the W axis, the construction of a new stationary fence of cabinet type, which allowed to improve the tray system of leakage collection and provide a guaranteed sealing of the cutting zone.

Specifications

Type of product according to PP RF 616

5-axis horizontal machining centers

Length

7200 mm

Width

5500 mm

Height

4300 mm

Machine type

Machining centre STC H 125M

Maximum spindle speed 2250, 2500*, 3000

2250; 2500*; 3000

Diameter of boring spindle

110; 130* mm

Maximum table torque in the B axis

5000 nm

Working feed rate limits of the rotary table in the B axis

1 .... 1080 deg/min

Table load capacity, kg

6 000 kg

Table work surface size

1100?1250; 1250?1250; 1250?1500; 1250?1400*;1400?1600; 1600?1800; 1600?2000 mm

Machine weight

20000 kg

Overall dimensions (width/length/height)

5 200 / 6 500 / 4 300 mm

Coolant supply via nozzles on the spindle headstock,

100 l/min l

Positioning repeatability accuracy

0;0025 mm

Axis positioning accuracy

0;005 mm

Maximum tool length,

400 mm

Maximum tool diameter

125 mm

Capacity of instrument magazine, pcs.

SBVVBG pcs

Maximum feed force in the X/Y/Z/W axes,

kn 12;5 / 10 / 10 / 10 / 15

Rapid Travelling Speed in X, Y, Z, W axes m/min 15

m/min 15 mm

Working feed rate limits in X, Y, Z, W axes

1 .... 15000 mm/min mm

Maximum programmable movements,

mm: - x-axis (table transversely) 2000 - y-axis (spindle headstock vertically) 1220*; 16001) - z-axis (boring spindle) 710 - w-axis (stand longitudinally) 1600 mm

Maximum torque on the spindle,

1700*; 2500 nm

Rated power of the spindle rotation drive

28 kW

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
