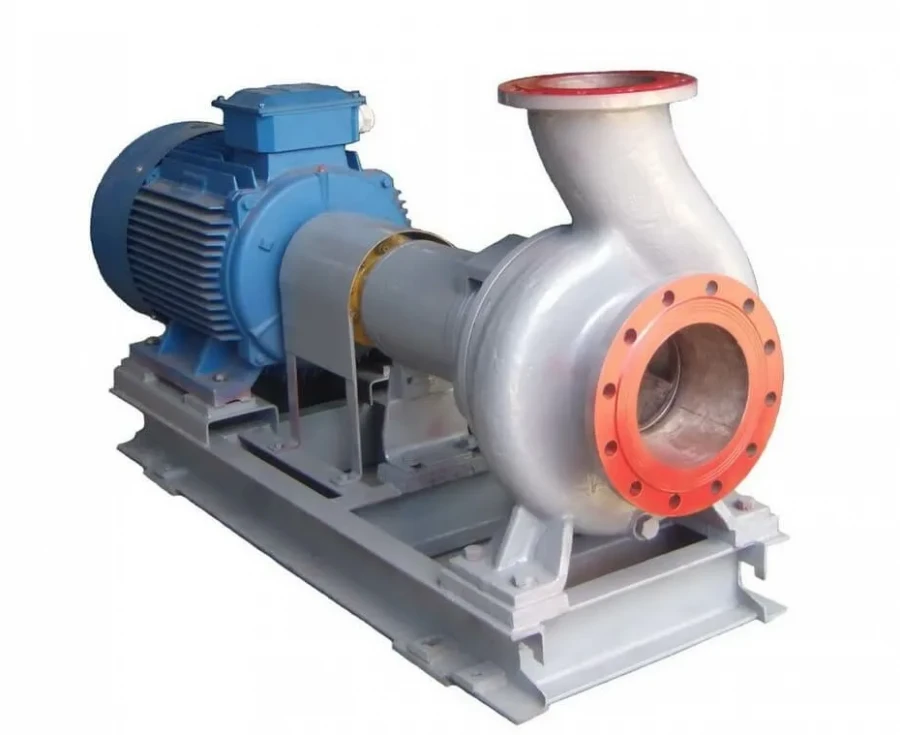

Horizontal Centrifugal Pump Unit Type XRO for Reliable Fluid Transfer

The pump included in the unit is centrifugal, horizontal, cantilever. The pump is driven via elastic coupling with mounting spacer. The impeller is of closed type.

Direction of rotation of the rotor of the XRO500/25 unit is clockwise, of the XRO1000/24, XRO1000/34, XRO1600/24 units - anti-clockwise, when looking at the pump from the drive side. The rotor is supported by liquid lubricated roller bearings. Pump shaft sealing is double gland sealing with cooling liquid supply.

The cooling liquid is supplied to the seal chamber, as well as to the pump casing and to the cooling chamber of the support bracket. The materials of the main parts are various stainless steels (K, E).
