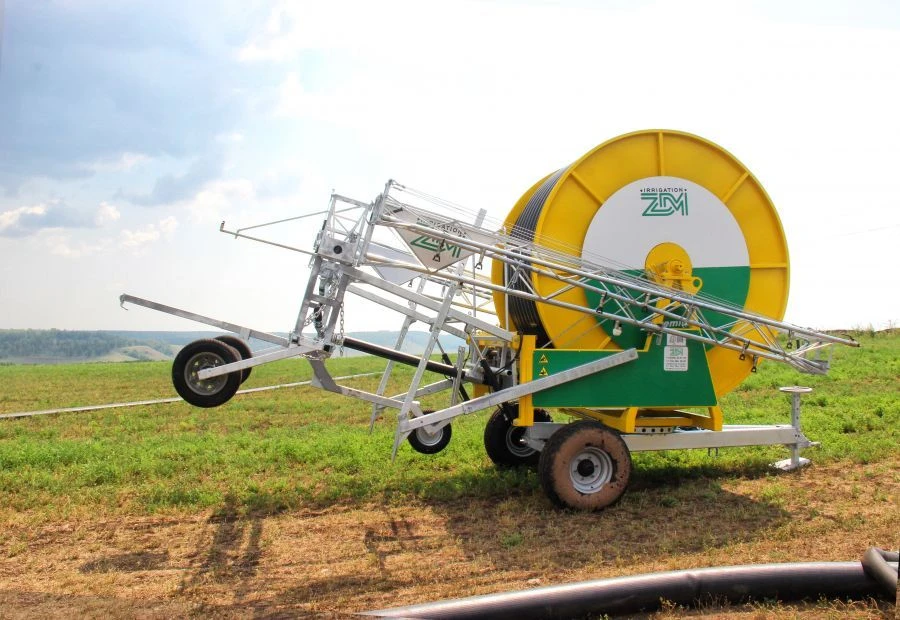

Hinged console KD 40/62

Consol mounted KD 40/62 on three- or five-wheeled chassis has a boom with a structural length of 40 metres. The design is considered to be the most efficient, robust, reliable and versatile means of irrigating small-seeded vegetable crops.
Design features:
- The width of the irrigation band is 40-62 metres.
- Water flow rate 20-70 m3/h
- Working pressure 1-2 atm
- Number of nozzles 15-27 pcs.
- Track width 1.5-3.2 metres (adjustable)

The KD 40/62 hinged sprinkler console is easy to use and can be folded down to the transport position in a few minutes with the help of just one person. The console can work with drum type sprinklers of any size.

The sprinkler console from ZDM-Irrigation is characterised by the highest irrigation quality. The rigid construction of the space truss ensures stability when travelling and ease of transport due to its compactness when folded.
