High-voltage static converter PVA-65-U1

Static Power Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

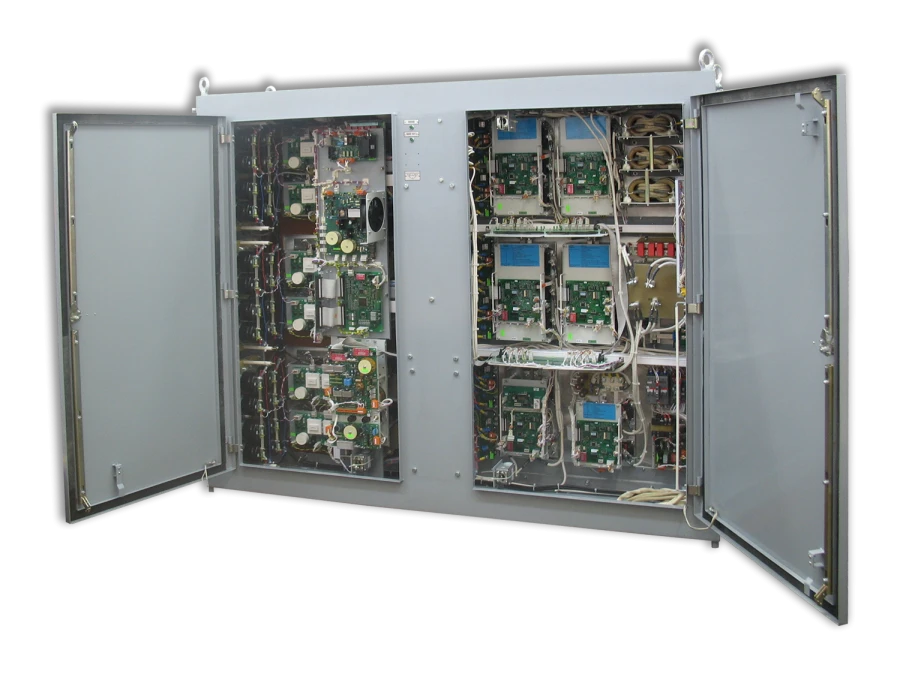

The high-voltage static converter PVS-65-U1 is designed for power supply of consumers of 2-storey passenger car with centralised power supply. PVS-65-U1 provides conversion of high voltage train mains voltage 3000V DC into DC and AC voltages of the required value. The converter can be supplied from the train high-voltage main line in one-wire or two-wire version. PVS-65-U1 at the parking can function in full at supply from the external AC network 3x380V 50Hz (with deviations of the network voltage up to 10% from the nominal value). Long-term output power of the PVS-65-U1 converter is 55 kW, hourly - 65 kW. PVS-65-U1 has a system of diagnostics of emergency condition and indication in the converter control system of a specific type of failure of each channel. There are 51 units in operation.

Specifications

Rated current (Channel 1, 2) 31.5 A

Rated current (Channel 3, 4) SBVVBG A

Number of phases (Channel 1, 2) 3 pc

Number of phases (Channel 3, 4) 3 pc

Nominal frequency (Channel 1, 2) SBVVBG

Nominal frequency (Channel 3, 4) SBVVBG

Frequency control range (Channel 1, 2) 20...70

Rated output power (Channel 1, 2) B1/B8 2100/900 MHz

Rated output power (Channel 3, 4) 19

Voltage regulation range (Channel 1, 2) 88...308 V

Rated output voltage (Channel 3, 4) 220 V

Rated output voltage (Channel 1, 2) 220 V

View of output voltage (Channel 1, 2) PWM, dU/dt < 500 V/µs

Type of output voltage (Channel 3, 4) sinusoidal

Voltage maintenance error (Channel 1, 2, 3, 4) 5 %

Frequency maintenance error (Channel 1, 2, 3, 4) 1 %

Load power factor (Channel 1, 2, 3, 4) 0.9 pc

Overcurrent trip time I/Inom=1.25 (Channel 1, 2, 3, 4) 10

Overcurrent trip time I/Inom=1,5 (Channel 1, 2, 3, 4) 1

Overcurrent trip time I/Iinom=1.8 (Channel 1, 2, 3, 4) Instantaneous

Permissible phase current asymmetry (Channel 1, 2, 3, 4) 40 %

Rated output voltage (Channel 5) 110 V

Output continuous power when powered by VHF (Channel 5) 15 kW

Output continuous power when powered from 3 x 380 V, 50 Hz mains (Channel 5). 13 kW

Maximum battery charging current (Channel 5) 60 A

Maximum total current (Channel 5) 110 A

Overall dimensions of the cabinet (LxWxH) 1982x531x1400 mm

Tripping time at 50% unbalance (Channel 1, 2, 3, 4) 3

Voltage regulation range (Channel 5) 77...143 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
