High Voltage Short Circuit Indicator for Monitoring Power Lines - Model IKZ-V41

Electrical Measurement Instruments

Manufacturer: ANTRAKS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

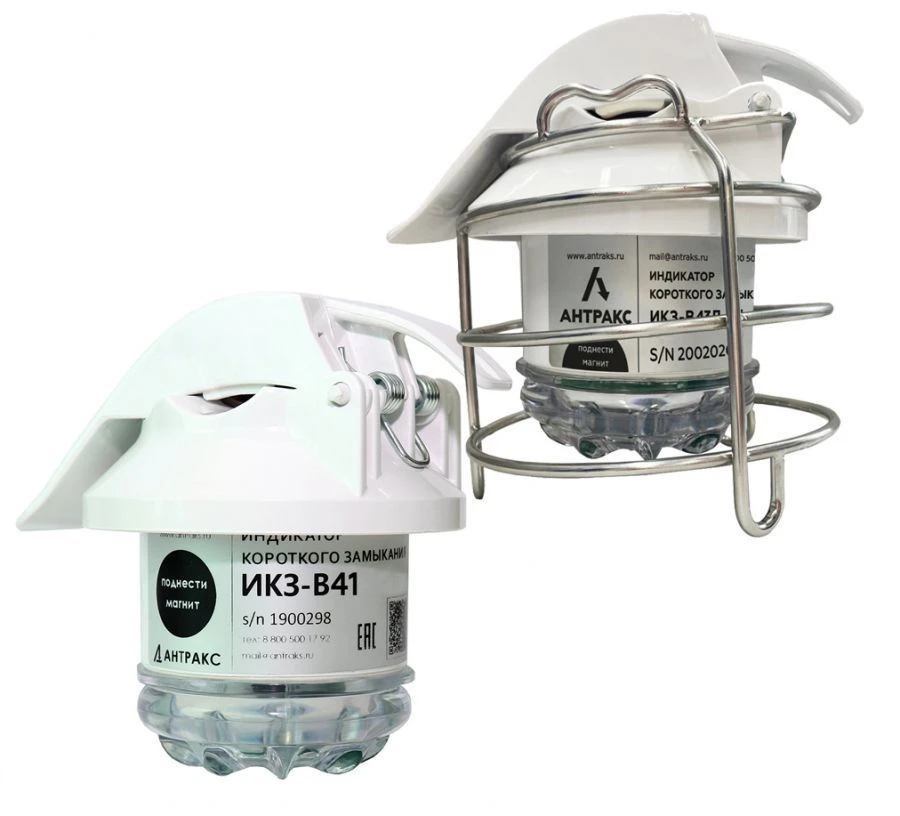

Indicator of short circuit for overhead lines of high voltage class 110 kV, network frequency 50 Hz, with installation on the wire of the controlled line. Detection of emergency processes with short-circuit current flowing more than 25A. Model IKZ-B41 is the simplest modification with visual indication only, without means of communication, it is convenient to place in a clearly visible area, for example, at the entrance of overhead lines in substations.

Separate indication of stable and unstable line faults by means of super-bright LEDs with visibility up to 100 m (daytime) and up to 500 m (nighttime). Change of settings by means of DIP switches for 10 positions. Power supply - lithium battery (8.5 Ah), standby life 10 years.

Protection degree of the indicator is IP 68 according to GOST 14254-96. On overhead lines of high voltage class, a Faraday cage is used to protect the indicators from induced voltage.

Specifications

Voltage class of overhead lines

110 kV

Short-circuit current sensitivity

25 A

Power supply

8.5

Battery life (standby)

10 year

Wire diameter, options

5...28 mm

Temperature range standard

-40 to +70 °C

Temperature range extended

-60 to +85 °C

Network frequency

SBVVBG

Visibility of visual indication at night time

500 m

Visibility of the visual indication during daylight hours

100 m

Absolute current trip threshold

100 A

Differential current trip threshold in %

SBVVBG %

Differential current threshold in A

25 A

Blanking of inrush currents

100

Time to analyze the alarm process

200

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
