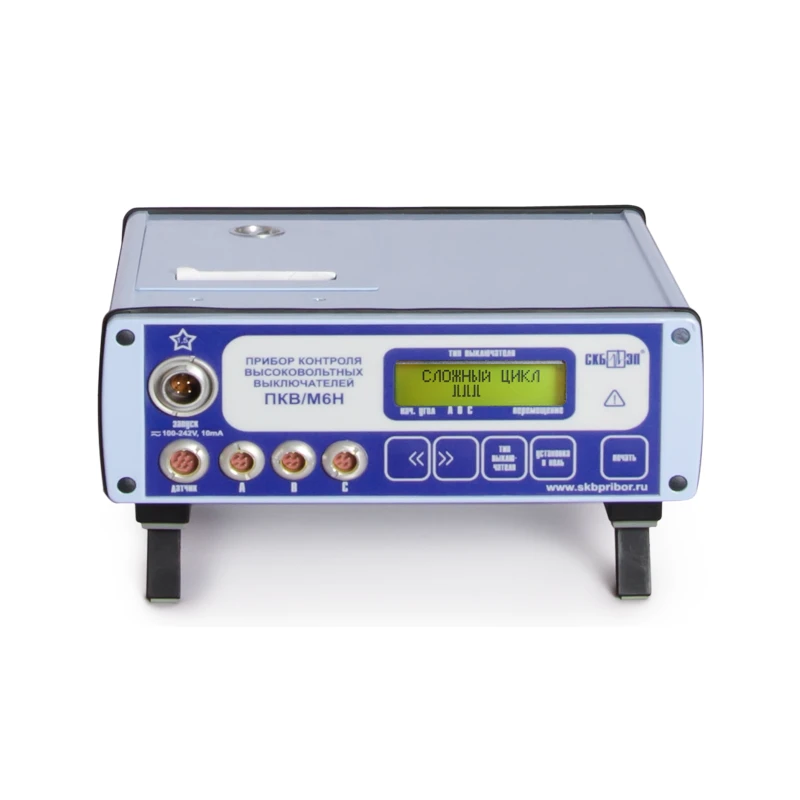

High Voltage Circuit Breaker Control Device PKV/M6N for Precise Measurements

PKV/M6N is designed to measure the characteristics of gas-insulated, oil-insulated, electromagnetic and vacuum high-voltage circuit breakers, as well as isolators and short-circuiters.

The device allows simultaneous measurement of time, stroke and speed parameters of moving parts, measurement of time to closing/opening of controlled contacts.

PKV/M6H is available in two configurations - standard (control of all parameters) and lightweight (control of time parameters).

After measurement, the device recognises and calculates parameter values for simple operations and complex cycles, and to set them, it is necessary to use external switching equipment such as PUV-10.

The PCV/M6H allows you to get a ready protocol at the end of the measurement, which is printed out by the built-in thermal printer. Printing of the measurement results can be repeated as many times as required.

The protocol contains: a table with measured and calculated parameters, as well as graphs of the dependence of the processes of diagnosti....
