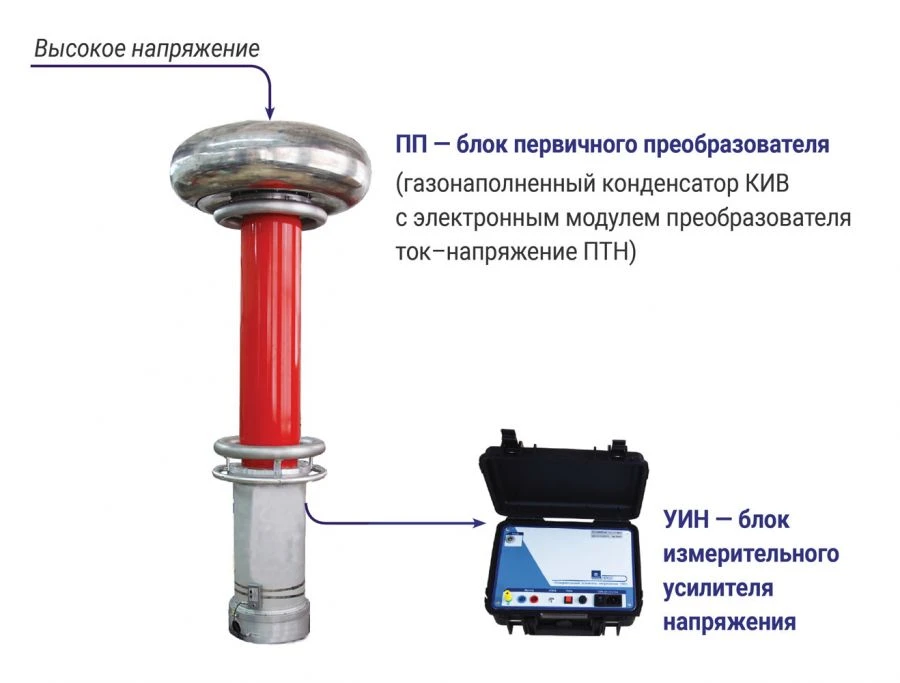

High Voltage Capacitive Voltage Transformer PVE-500 for Accurate Measurements

Voltage converter measuring high-voltage capacitive scale for verification of ITNs up to 500 kV. State Register No. 77712-20.

Produced in various modifications depending on the accuracy class and values of nominal secondary voltage. Accuracy classes: 0.05, 0.1 Nominal secondary voltage: 100/?3; 100; 100/3; 110/?3; 110; 110/3; 120 V The PVE-500 is designed for analogue scale conversion of high AC voltage at the input to low voltage at the output with a constant conversion factor. PVE-500 is used for: -verification of working voltage measuring transformers of accuracy class 0.2 and less accurate voltage class 500 kV as a reference measuring instrument; <ul> <li>- measurement of high voltage.</li> </ul>.
