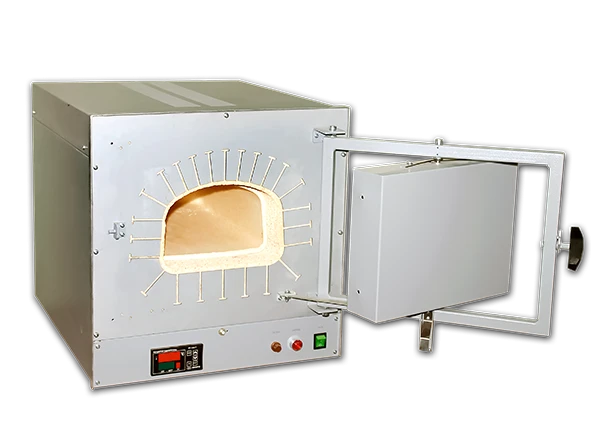

High-Temperature Muffler Furnace PM-12 for Thermal Material Processing
Manufacturer:
EVS LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for thermal processing of materials. Protection class against electric shock I according to GOST 12.2.007-93. Climatic execution UHL 4.2 according to GOST 15150-69.
Specifications
Type of product according to PP RF 616
Electric resistance furnaces
Internal dimensions of the chamber
Width - 190 mm; Height - 110 mm; Depth - 350 mm. Total volume 8 litres.
Maximum operating temperature in the chamber
1250 °?
Rated supply voltage
220 V
Rated current frequency
SBVVBG
Number of phases of the supply network
One phase
Power consumption in heating mode
Not more than 4 kW
Power consumption in maximum temperature maintenance mode
Not more than 1500 W
Resistance of heaters
14+- 2 ohms.
Type of thermostat
Микропроцессорный ПИД
Accuracy of temperature maintenance in the range from 500°C to maximum in steady-state mode , in the area of thermocouple instal
not more than 3 per cent
External dimensions
Width - 475mm; Height - 520mm; Depth - 600mm.
Weight
55 kg
Thermocouple type
TXA
Heating time up to 900°C without loading
Not more than 90 minutes
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
