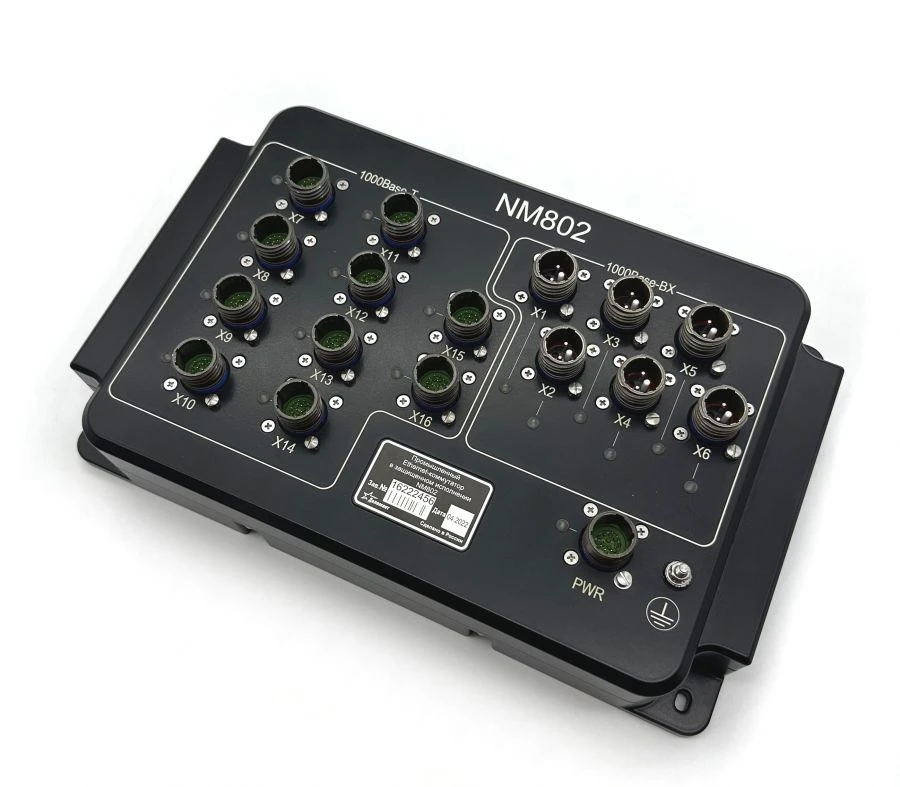

High-Speed Managed Ethernet Switch NM802 for Industrial Use

Available for Import

High-Speed Managed Ethernet Switch NM802 for Reliable Industrial Networking

Switching Communication Systems

Manufacturer:DOLOMANT OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

High-speed managed Ethernet switch NM802 in a protected version of IP65 class is designed to combine into a single information network of devices, complexes and various systems using data transmission channels through the physical medium such as optical fibre and copper cable, as well as to create a unified multi-service, fault-tolerant industrial data transmission network.

Specifications

External interfaces

Ethernet 1000Base-BX - 6 channels; Ethernet 1000Base-T - 10 channels

Switch type

non-blocking, Store And Forward with full frame buffering

Support for network standards

IEEE 802.3, 802.3i, 802.3u, 802.3z, 802.3ab

Connection to 1000Base-T/1000Base-BX

full duplex, half duplex

Connection to 100Base-FX

full duplex

Indication

successful switching on and passing self-test; status of generalised error sign; presence of communication and activity for each port

Switchboard management

out-of-band control ICLI (Industrial Command Line Interface) via RS232; in-band control SSH, Web, SNMP v1/v2c/v3 agent, Telnet

Support RMON (RFC1271)

statistics, history, alarm, event

MIB support

RFC1213 MIB-II, RFC 4188 bridge MIB

VLAN support

tagged-based VLAN (IEEE 802.1Q standard)

Supports IEEE 802.3ad link aggregation

Armoured glass

Support for QoS mechanisms

Armoured glass

Port Mirroring Support (Port Mirroring)

Armoured glass

Support for redundant ring topology construction

Armoured glass

LLDP, LACP support

Armoured glass

Support ERPS protocol G.8032/Y.1344 v.1, v.2

Armoured glass

Support for working with Radius servers

Armoured glass

Support DHCP option 82 relay

Armoured glass

MAC address table size

32K

System log (Syslog service)

Armoured glass

NTPv4 client

Armoured glass

DHCP client/server

Armoured glass

Type of architecture

Armoured glass

Nutrition

27V two-wire DC network

Power consumption

Not more than 50 W

Operating temperature

minus 40 °C to plus 55 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
