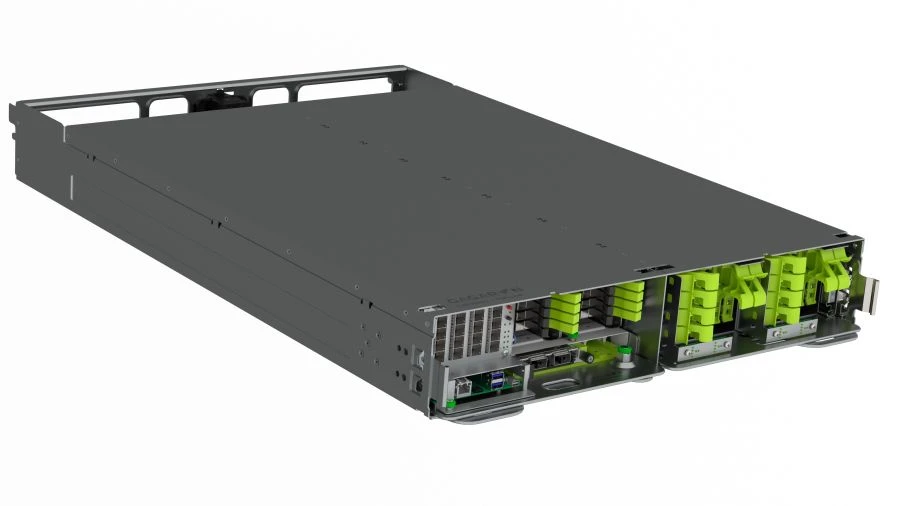

High-Performance Storage Server GAGAR>N Oracle Gen 3 NERW.466216.011

Available for Import

High-Performance Storage Server GAGAR>N Oracle Gen 3 for Data Management

Data Processing Systems

Manufacturer: GAGAR.IN LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The server is a high-performance computing device for data storage and processing. The main processor used is Intel Xeon Scalable 3rd generation processor with thermal package up to 270 W in the amount of 2 pcs. The power supply of the server is provided from the common 12V DC power bus.

The server is equipped with: 3 PCIe 4.0 x16 slots, 1 PCIe 4.0 x8 slot, 1 OCP 3.0 slot; drive bays: up to 32x hot-swappable 2.5 drives, 2 M.2 slots for M.2 PCI-E NVMe; network interfaces: Ethernet 100/1000 Mbps RJ45; ports and connectors: on the front panel: 2 x USB 3.0 Type A, 1 x USB 3.0 Type C,1 x miniDP, 1x RJ-45 (for management); server management system - BMC controller ASPEED AST2600; supported protocols: IPMI 2.0, Redfish, SNMP, WebUI, CLI (SSH); 6 fans 80 mm; UEFI and BMC development GAGAR>N.

Specifications

Form factor

Server in 2 OU chassis placed in OCP Rack v2 standard cabinet

Processors

Up to two 3rd generation Intel Xeon Scalable processors, up to 40 cores each, TDP up to 270W

RAM

32 DDR4 memory slots up to 3200MHz, up to 8TB.

Chipset

Intel Lewisburg C621A

Expansion slots

3 PCIe 4.0 x16 connectors, 1 PCIe 4.0 x8 connector, 1 OCP 3.0 x16 connector

Basic storage system

8 2.5 7 mm (U.2 - NVMe/SATA) drives on front panel, hot-swappable or 6 2.5 15 mm (U.2 - NVMe/SATA) drives on front panel, hot-swappable

Additional storage subsystem

24 hot-swappable 2.5 15 mm (SAS/SATA) drives or 16 hot-swappable 2.5 15 mm (U.2 - NVMe) drives

OS boot drives

2 M.2 PCI-E NVMe slots

Network interfaces

К сети управления посредством встроенного интерфейса Ethernet 100/1000 Мбит/с RJ-45 К сети передачи данных через плату расширения OCP 3.0 Mezzanine или PCI-адаптер

Ports and connectors

Front panel: 2x USB 3.0 Type A, 1x miniDP, 1x RJ-45 (for management)

HBA/RAID support

Hardware RAID controller with cache (optional) Intel VROC (optional)

Power supply

Centralised from 12 V cabinet power bus

Server management

ASPEED AST2600 BMC controller, UEFI and BMC microcode developed by GAGAR>N. Supported protocols: IPMI 2.0, Redfish, SNMP, WebUI, CLI (SSH).

Cooling modules

6 fans 80 mm

Operating temperature

Up to 40C

Working with operating systems

ROSA, RedOS, Astra Linux, ALT Linux, Microsoft, Red Hat, VMware, etc. For detailed information see the manufacturer's website

Server dimensions (DxWxH), mm

747x528x88,7

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
