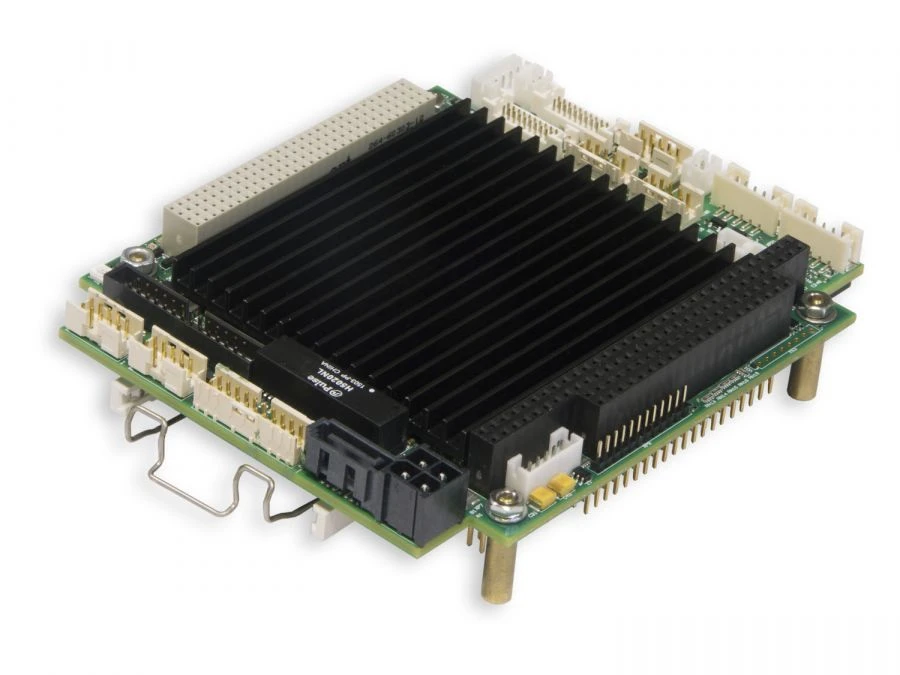

High-Performance PC/104-Plus Processor Module CPC310 for Embedded Applications

Advanced Computing Devices

Manufacturer: DOLOMANT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The product is a PC/104-Plus format processor module designed for embedded applications requiring high performance and low power consumption. The module contains: CFast connector, two Ethernet channels, 4 USB ports, one Serial ATA port, 4 serial ports, NAND Flash drive. The module functionality can be extended by connecting additional modules of PC/104, PC/104-Plus, PCI-104 format. The module is supplied with installed operating system (hereinafter referred to as OS) FreeDOS and is compatible with OS: QNX, Windows Embedded Standard 7, Linux.

Specifications

Nutrition

+5 ?

Processor

Intel Atom E3825 (Dual Core) - CPC310-01, CPC310-03; Intel Atom E3815 (Single Core) - CPC310-02, CPC310-04

Software compatibility with OS

FreeDOS; Linux; QNX; Microsoft Windows Embedded Standard 7

Power consumption

CPC310-01, CPC310-03 - 10 W; CPC310-02, CPC310-04 - 8 W

Operating temperature range

CPC310-01, -03 - minus 40 to plus 75 ºC; CPC310-02, -04 - minus 40 to plus 85 ºC

Watchdog timer

WDT1 with fixed trigger interval; WDT2 with software configurability

Real Time Clock

Yes (connect external battery via connector)

Audio Support

HD Audio codec; Line input (stereo); Line output (stereo); Microphone (mono)

PS/2 keyboard and mouse port

Armoured glass

Opto-isolated external reset/interrupt input

Yes (Insulation up to 500 V)

Discrete I/O port

8 separately programmable I/O lines

Parallel LPT port

Armoured glass

Serial ports

COM1: RS232 (up to 115 Kbps); COM2: RS232 (up to 115 Kbps); COM3: RS422/485 (up to 921 Kbps), opto-isolated (up to 500V); COM4: RS422/485 (up to 921 Kbps), opto-isolated (up to 500V); Console I/O via serial ports (COM1/COM2)

USB ports

Support USB 1.1 (12Mbps), USB 2.0 (480Mbps); Connect up to 4x devices

2 LAN 10/100/1000 Mbit ports

Yes (use one connector)

SATA Gen II Connector

Yes (Switches with CFast connector)

CFast drive connector

Armoured glass

FRAM 32 Kbytes (SPI port)

For storing user data

SSD SATA flash drive (SLC NAND Flash)

32 GB (for -01, -02 versions)

FLASH BIOS

64 Mbit SPI-Flash; System modifiability

ISA bus

16-bit / 8 MHz; DDMA Support, ISA IRQ

PCI bus

32-bit / 33 MHz; Supports up to 3 bus master devices

Video controller integrated

2D/3D-accelerator; VGA-output (resolution up to 2560x1600, 60 Hz); 2 LVDS ports (resolution up to 1600x1200, 60 Hz, 18/24 bits).

RAM

DDR3 SDRAM 1066 MHz up to 4GB with ECC support (4GB - CPC310-01, CPC310-03; 2GB - CPC310-02, CPC310-04); 64-bit data bus

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
