High-Performance DEPO Storage System 6424DLR for Data Management

Storage Devices

Manufacturer: DEPO Electronics LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Productive network storage built on the basis of domestic platform DEPO with support for high-speed technology SAS3. Possesses increased fault tolerance due to the simultaneous work of two controllers in active mode. DEPO Storage 6424DLR model provides high speed processing of DBMS queries and other corporate applications.

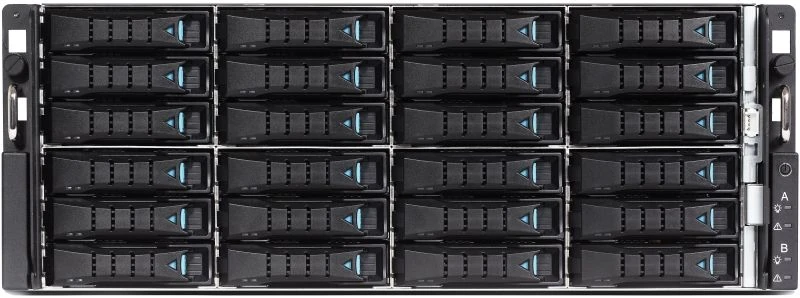

The storage system is a combination of two hot-swappable controllers and a JBOD type disc array in one chassis. The controllers have the ability to simultaneously access each of the 24 drives. The storage architecture provides maximum fault tolerance and uninterrupted access to critical data and services.

DEPO Storage 6424DLR is recommended for use in enterprises with developed IT infrastructure, as well as in government information systems.

Specifications

Form factor

4U high enclosure for 19" rack mounting, dimensions (L × W × H, mm): 700 × 483 × 178.

Chipset

Intel® C612

Processors

Up to two Intel® Xeon® E5-26xx v4 with TDP up to 145W in each of their two controllers

Rear I/O panel

Low-profile PCI-E slots: 3 PCI-E 3.0 x8 and 2 PCI-E 3.0 x16 slots on the rear panel of each module - for installing expansion interface cards.

RAM

Each controller supports installation of up to 1024GB of DDR4 ECC Reg RAM in 16 memory slots. Supported memory type is DDR4 RDIMM/LRDIMM. Supported modules are 4GB/8GB/16GB/32GB/64GB DIMM. In the case of single processor installation, only the

Available expansion slots

Each controller has 5 PCI-E 3.0 expansion slots (2 x16 slots, 3 x8 slots), 8 SATA3 (6Gbps), RAID 0, 1 for connecting SATA SSDs for OS booting.

Power subsystem

There are 2 hot-swappable power supply modules of 1200W each with 80+ Platinum specification on the rear panel of the common chassis.

Data storage subsystem

The overall chassis contains JBOD storage with 24 front bays for hot-swappable 3.5?/2.5? SAS drives. Up to two fixed 2.5? SSD SATA SSDs can be installed in each controller for OS booting.

Cooling subsystem

Each controller has 4 high performance 60 × 60 × 51 mm fans with variable speed control and hot-swap support.

Management platform

Support for block and file access protocols (SMB/CIFS, NFS, FTP, AFP, FC, iSCSI).

Equipment

SCS is complete with rack mount rails, standard rails have adjustable length of 673 ~ 924mm.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
