High-Performance Computing Server Tioga Pass HEPB.466216.007 for Data Storage and Processing

Data Processing Systems

Manufacturer: GAGAR.IN LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

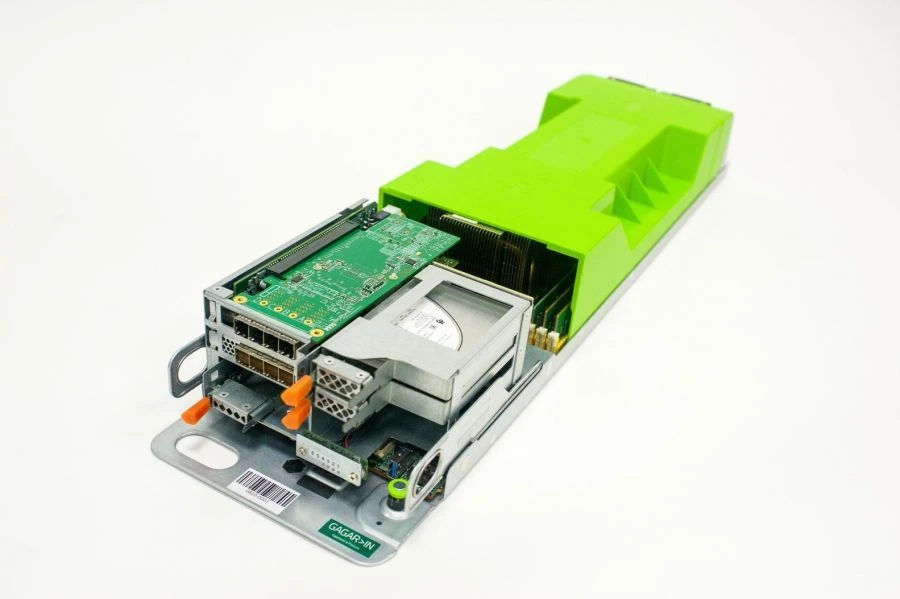

Gagar.IN TIOGA PASS Compute Server is a high-performance computing device designed for data storage and processing. As the main processor is used 2nd Generation Intel Xeon Scalable Processors socket LGA3647, the thermal package of the processor up to 165 W in the number of 2 pcs. The design of the server power supply system assumes the use of a common 12.5 Volt DC power bus of the rack level.

The server has: 12 slots for installation of buffered register memory DDR4 SDRAM with error correction support (ECC); 2 slots for installation of PCIe Gen3 x16 expansion cards; 1 slot for installation of OCP 2.0 Mezzanine expansion cards, built-in network interface for management Ethernet 10/100/100 Gbit/s. Model range: Gagar.IN Tioga Pass 1x, Gagar.IN Tioga Pass 2x, Gagar.IN Tioga Pass 3x, where "x" - no more than 6 characters (digits from 0 to 9, and/or Latin letters from A to Z) denoting the type of server platform, proce...

Specifications

Chipset

intel c621

Processors

2 intel 2nd generation xeon scalable processors; socket lga3647

Rear I/O panel

Rear server panel contains only 12 volt power connector

Available expansion slots

2 pcie gen3 x16 expansion card slots; 1 ocp 2.0 mezzanine expansion card slot

Power subsystem

The server does not have its own power supplies and is powered by a common 12 volt; DC rack level bus.

Data storage subsystem

4 hot-swap drives with sata interface and one m.2 card module for boot drive

Cooling subsystem

2 fans 80 mm in diameter

Front panel and indication

led power indicator; led disk activity indicator; led bmc controller error indicator

Operating temperature range

10-35

Operating temperature range

0-40

Availability of a mouse manipulator

Mouse manipulator can be optionally connected via usb interface

Means of communication

built-in network interface for ethernet 10/100/1000 mbps control network with rj45 connector

Internal slots and connectors

2 pcie gen3 x16 expansion card slots; 1 ocp 2.0 mezzanine 16x expansion card slot; 1 m.2 module slot

Internal storage size

960

RAM size

1536

Number of processor cores

22 pcs

Base frequency of the processor

2.1

Case Form Factor

3 servers installed in a row horizontally in a common chassis with height of 2 open units

Operating system

linux

Monitor availability

monitor can be optionally connected via vga interface

Keyboard availability

keyboard can be optionally connected via usb interface

External connectors

ethernet 10/100/1000 mbps rj45; vga port; usb 3.0 type a; usb 3.0 type c

Architecture

x86

Form factor

3 servers installed in a row horizontally in a common chassis

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
