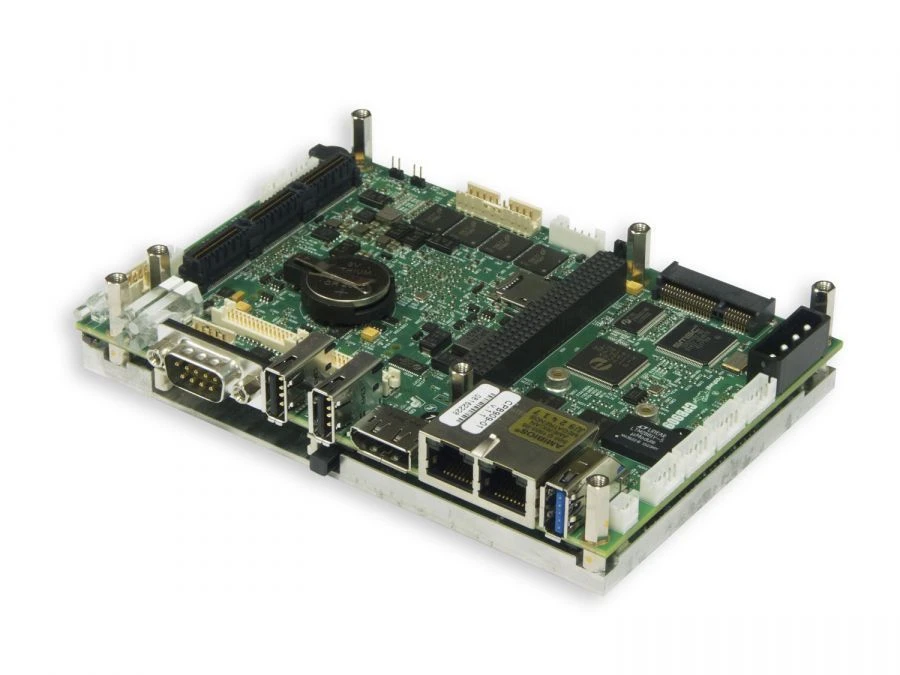

High-Performance 3.5" Processor Module CPB909 for Embedded Applications

Advanced Computing Devices

Manufacturer:DOLOMANT OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The module is a 3.5" processor module designed for embedded applications requiring high performance and low consumption. The module contains a CFast connector, two Ethernet channels, 7 USB ports, one Serial ATA port, eight serial ports, and a NAND Flash drive. The module functionality can be extended by connecting additional modules of StackPC, StackPC-PCI, PCI-104, PCIe/104, PCI/104-Express formats.

The module is supplied with installed operating system (hereinafter referred to as OS) FreeDOS and is compatible with OS: QNX 6.5, Windows Embedded Standart 7, Windows Embedded 8 Standart, Linux 2.6.

Specifications

Power consumption

CPB909-01 20W; CPB909-02 14W

Nutrition

+5 ?

Operating temperature range

Minus 40 to plus 85 ºC

Watchdog timer

WDT1 with fixed trigger interval; WDT2 with software configurability

Software compatibility with OS

FreeDOS; QNX 6.5; Microsoft Windows Embedded 8 Standart; Microsoft Windows Embedded Standart 7; Linux 2.6

Real Time Clock

Power supply from CR2032 lithium battery (3 V); Possibility of external power supply connection

Audio Support

HD Audio Codec; Line input/output (stereo); Microphone (mono)

PS/2 keyboard and mouse port

Armoured glass

Opto-isolated external reset/interrupt input

Insulation up to 500 V

Discrete I/O port

16 separately programmable I/O lines

Serial ports

COM1, COM2: RS232 (up to 115 kbit/s); COM3 - COM6: RS485/422 opto-isolation up to 500 V (up to 921 kbit/s); COM7, COM8: RS232 (up to 3,6 Mbit/s); Console I/O via serial ports (COM1, COM2)

USB ports

Connection of up to 6 devices (USB 2.0); One USB 3.0 device

LAN controller

10/100/1000 Mbps - 2 pcs.

FRAM 32 Kbytes

(SPI port) for storing user data

Connector for connecting storage devices

CFast; MicroSD

SSD SATA Flash disk

32 GB

SATA interface

Switching with CFast connector

FLASH BIOS

64 MB SPI-Flash; Possibility of modification in the system

SMBUS bus

Support v.2.0 specification

LPC bus

Support v.1.1 specification

PCI-E bus

Support v.2.0 specification; support up to 5 devices in x1 mode (5Gbps); support Mini PCI Express cards

PCI bus

Support v.3.0 specification; 32-bit / 33MHz; Support up to 4 bus master devices

Video controller integrated

VGA output (resolution up to 2560x1600 60 Hz); DisplayPort - 2 ports (resolution up to 2560x1600 60 Hz); LVDS - 2 ports (resolution up to 1920x1200 60 Hz 18/24 bit).

RAM

DDR3L-1066 SDRAM up to 4GB with ECC support (4GB RAM - CPB909-01; 2GB RAM - CPB909-02)

Processor

Intel Atom E38xx (Intel Atom E3845 (Quad Core) - CPB909-01; Intel Atom E3825 (Dual Core) - CPB909-02)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
