High-Frequency Twisted Pair Cable for Reliable Data Transmission - 10pr U/UTPt-5e 25 AWG PE

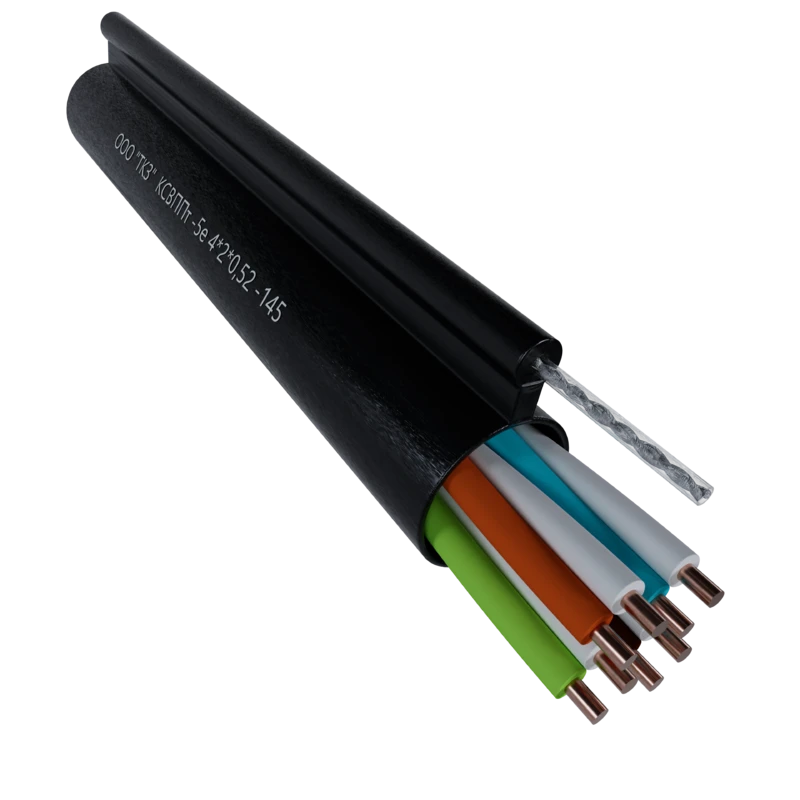

Construction: Cores of soft copper wire in polyethylene insulation, twisted in pairs with steps, not equal and not multiples of each other. The pairs are twisted into the core by unidirectional twisting. It is allowed to overlap the twisted cable core with overlapping PET tape belt insulation. On top of the core there is a sheath made of light-stabilised polyethylene (HDPE), with an external load-carrying element twisted from seven galvanised steel wires, connected by a jumper. Scope of application: The cable is designed for horizontal and vertical external laying on the walls of buildings, suspension on overhead communication lines and pulling between supports or buildings, for operation in the frequency range up to 100 MHz (category 5 and 5e according to GOST R 54429-2011) and ISO/IEC 11801. Cables are manufactured in climatic version UHL, placement categories 1, 2 according to GOST 15150.
