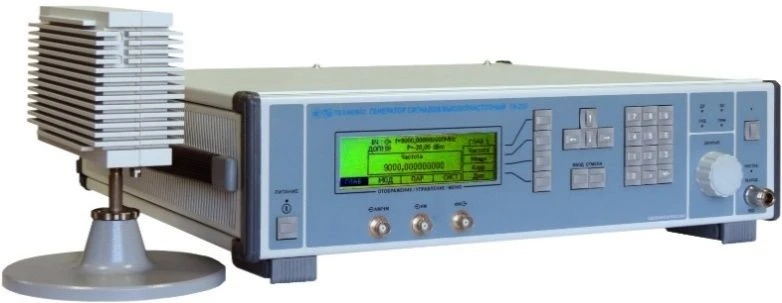

High-frequency signal generator G4-232

Generator is designed to form both continuous sinusoidal oscillations and signals with amplitude, frequency and pulse modulation in a wide frequency range.It is based on the generator G4-230. Remote frequency converter with coaxial output extends the frequency range up to 37.5 GHz. Included coaxial-waveguide transitions and the ability to connect a small-sized frequency converter directly to the user's device expand the scope of application of the device.The generator is able to operate both autonomously and as part of automated measurement systems with interfaces such as USB and IEE-488 (KOP). High accuracy of frequency setting; Operation modes: NC, AM, IM, FM; Internal and external sources for all types of modulation; Operation with internal or external source of reference frequency 5 or 10 MHz; Liquid crystal display; Menu system; Additional RF output on the rear panel.
