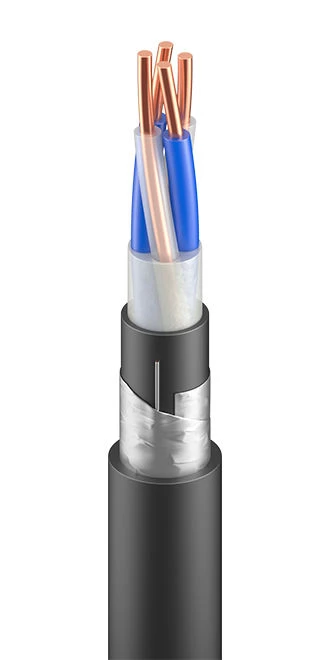

High-Frequency Local Communication Cable KSPZP for Efficient Data Transmission

Zonal Communication Cables

Manufacturer:REЖКАБЕЛЬ LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Local communication cable with copper cores with a diameter of 0,9 mm, one-quarter or two-quarter with polyethylene insulation and polyethylene sheath with hydroformed filling. They are intended for interstation and subscriber communication lines with transmission systems with time division of channels and pulse-code modulation with transmission rate up to 2048 kBit/s at remote power supply voltage up to 500 V DC.

Specifications

AC voltage test with nominal frequency of 50 Hz for 2 minutes between cores

2000 V

Electrical resistance of the screen, recalculated per 1000 m of length and temperature 20 C, not less than

15 ohm

Electrical insulation resistance of conductive cores, recalculated for 1000 m of length and temperature 20 C, not less, MOhm

15000

DC remote power supply voltage

500 V
