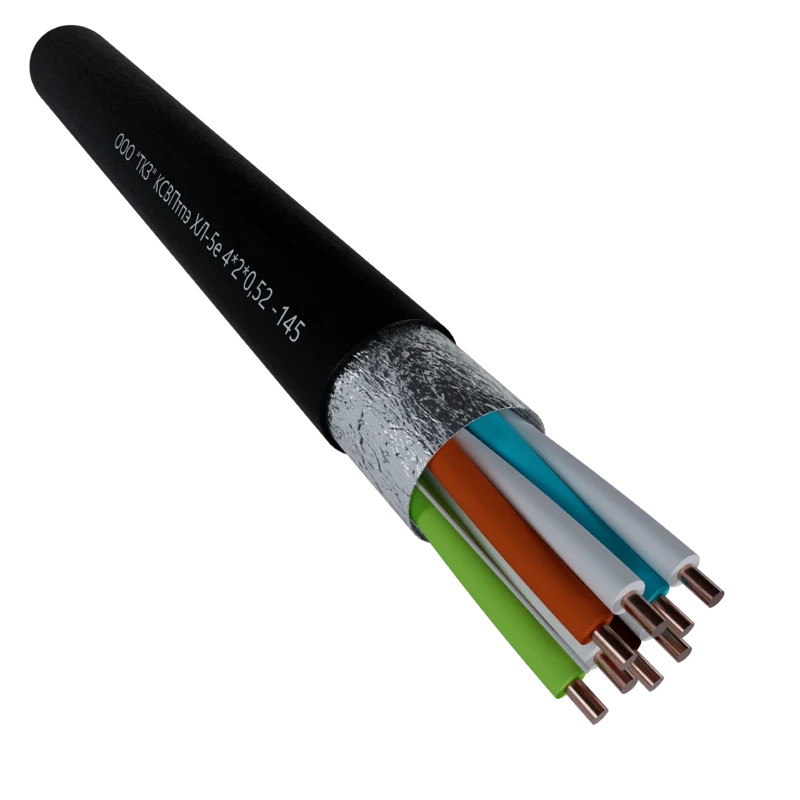

High-frequency cable with paired twisting KSVPTPE XL-5e 8õ2õ0,51

Core of soft copper wire with PI, twisted in pairs with steps, not equal and not multiples of each other.Pairs are twisted in a core by unidirectional twisting.On top of the core there is a screen from aluminopolym.tape with a contact conductor of 0,4 mm diameter.On top of the screen there is a sheath from cold-resistant thermoplastic elastomer.
Cables of high-frequency pair twisting for structured cable systems are intended for stationary horizontal and vertical laying inside buildings and constructions, external laying on walls of buildings and suspension on overhead communication lines, for work in frequency range up to 100MHz (category 5 and 5e according to GOST R54429-2011) and ISO/IEC11801.Cables are made in climatic version U, categories of placement1,2,3,4 according to GOST15150.
Operation at ambient temperature minus 60 to 60°?.Cable installation is performed at temperature not lower than minus 40°?.
The minimum permissible bending radius during laying and installation should be not less than 8 maximum outer diameters of the cable.
