High-frequency cable F/UTP cat 5e PE 16x2x0,48 twisted pair cable

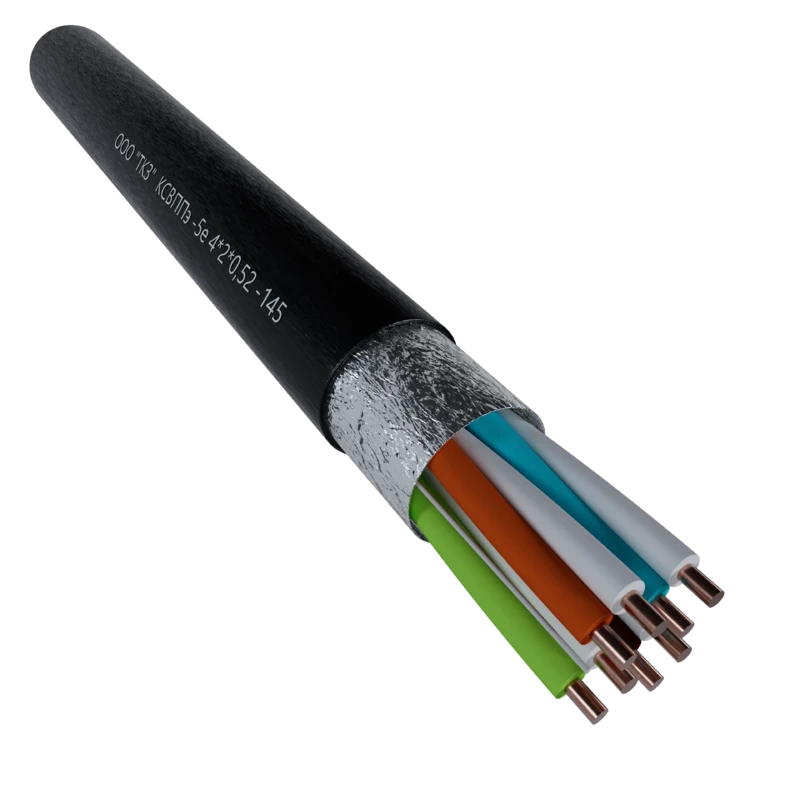

Construction:
Soft copper wire cores in polyethylene insulation, twisted in pairs with pitches not equal or multiple to each other. The pairs are twisted into the core by unidirectional twisting. It is allowed to overlap the twisted cable core with overlapping polyethylene terephthalate belt insulation. On top of the core there is a screen made of aluminopolymer tape with a contact conductor made of tinned copper wire 0,4 mm in diameter. On top of the screen there is a sheath made of light-stabilised polyethylene (HDPE).
Field of application:
High-frequency twisted pair cables for structured cable systems, designed for fixed horizontal and vertical external laying on the walls of buildings and suspension on overhead lines, for operation in the frequency range up to 100 MHz (category 5 and 5e according to GOST R 54429-2011) and ISO / IEC 11801. Cables are manufactured in climatic version UHL, placement categories 1, 2 according to GOST 15150.
