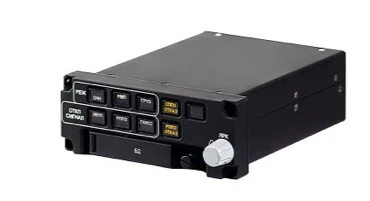

Helicopter Ground Proximity Warning System TTA-12H for Safety Applications

Advanced Computing Devices

Manufacturer: RPKB OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The system is designed to provide the flight crew with sufficient information to allow timely identification of the potential danger of collision with the ground (with the underlying surface or with another obstacle) at all stages of flight and to take effective actions to prevent a collision.

Specifications

Failure rates

- Average time of failure in flight: not less than 10,000 hrs - Average time of failure and damage: not less than 4,000 hrs

Weight

1.15 kg

Temperature limit

-55...85 °C

Operating temperature

-40...55 °C

Continuous operation time

at least 15 h

Ready time

No more than 10 s

Overall dimensions

156 × 60 × 216,5 mm

WSF

According to the VVF applicable to helicopters, the Product complies with the requirements of Annex P8.1 of NLGV-2 for the following performance group: - CODE-Helicopter-BIII, zone B-U I-UL-DR-T II -VL IA-TM I-PO-PP I-RS-PG-VDH.

Power consumption

Not more than 65 W

Power supply

27 V

Database

Digital elevation model 6×6 angular seconds, Artificial obstacle database, Aeronautical database

Interfaces

ARINC 429 - 4 inputs / 2 outputs, ARINC 646 (ETHERNET) - 1 channel, RS-232 - 1 channel, One-time commands - 6 inputs / 8 outputs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
