Heavy-Duty Trailer 843441 for Cargo Transport

Available for Import

Heavy-Duty Trailer 843441 for Efficient Cargo Transport Solutions

Heavy Duty Trailers

Manufacturer: NOVOSIBARZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The trucks are intended for carriage of assortment and other long cargoes, with installed container locks - containers of various types on roads of all categories of the general road network. Technically permissible maximum weight of vehicles is 32-40 tonnes. Design of the loading space is a load-bearing solid or sliding frame with an all-metal platform.

The frame is equipped with cable or belt winches and loops. Drawbar with a coupling loop of 50 mm or 57.5 mm diameter. Axles 9 tonnes manufactured by Plant Ltd.

or Axle unit 9 tonnes. BPV-Ost Ltd. Tyres 385/55 R22,5; 385/65 R22,5 manufactured by JSC "Kordiant"/ LLC "Nizhnekamsk Tyre Plant CMK".

Wheel discs manufactured by AccuRide Wheels Russia LLC / PJSC ChKPZ. Receiver manufactured by LLC TD "AUTOTECHNOLOGIA". Lighting equipment manufactured by OOO "Atlanta".

Floor level crane manufactured by VBK Vostok Ltd.

Specifications

Base machine type

truck

Climatic version

UHL

Type of trailer

General purpose; container ship

Number of axles

4 pcs

Front track

2000...2050 mm

Rear track

2000...2050 mm

Axle load capacity

8...10 t

Maximum length

16000 mm

Width

2550...3300 mm

Maximum height

4300 mm

Ergonomic parameters

Paintwork coatings used on the exterior surfaces of trailers may be painted or repainted with natural drying paints; the forces required to lift the spare wheel do not exceed 500 N (50 kgf). When using mechanisms

Warranty period

B1/B8 2100/900 MHz

Reliability parameters

Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond

Scope of application

Designed for transportation of various cargoes, including assorted and other long cargoes, containers of various types, including tank containers on roads of all categories of the general road network.

Technically permissible maximum mass of the vehicle

32000...40000 kg

Vehicle kerb weight

6000...16000 kg

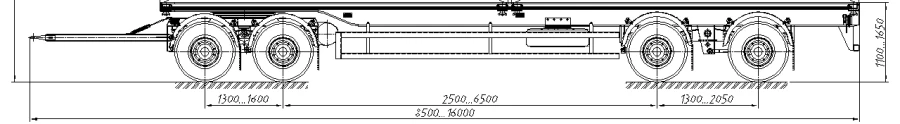

Base

1300...1600 + 2500...7500 + 1300...2050

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
