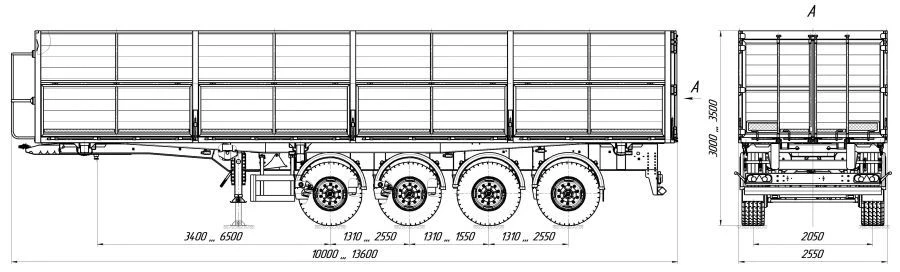

Heavy-Duty Semi-Trailer Production Model 924401 for Efficient Cargo Transport

2550 mm

?4

Tipper with two side or three-side unloading

Carriage of various bulk cargoes

10000-13600

3000...3500 mm

2050 mm

6...10 t

48 t

pneumatic, two-wire, with ABS, with electronic stability control system (in version with air suspension), braking mechanisms of all wheels of drum or disk type.

mechanical, with drive from spring energy accumulators to braking mechanisms of wheels of 2nd and 3rd axles.

dependent on longitudinal semi-elliptic springs with or without transverse stability stabiliser or dependent pneumatic with hydraulic telescopic shock absorbers.

spare wheel, chocks on request: tool box; load securing devices; front and/or rear lifting axle (for versions with air suspension); skid plates; working area illumination lights; additional rear lights
