Heavy-Duty Container Trailer for Transporting Large Cargo - Model 4589R1

Available for Import

Heavy-Duty Container Trailer for Transporting Various Large Cargo - Model 4589R1

Versatile Vehicle Trailers

Manufacturer: MEGATRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Semi-trailer container truck 4589R1, on axle unit OOO "MegaTron": MT-290006-1950, MT-2900034-1850, MT-2900034-2050, Semi-trailer-container truck 4589R1, on axle unit OOO "MegaTron": MT-2900705.1410.2-1850, MT-2900705.1410.2-1950, MT-

Description

The cargo semi-trailer is designed for transportation of various large-size, lightweight cargoes, for transportation of construction equipment and materials; Semitrailer body - all-metal, open platform with pneumatic locks for transportation of various containers - hoppers for installation of multilift, including transportation of dangerous goods
- Coupling kingpin 2 /3,5 inches, JOST/GF support device with two-speed drive.
- Braking system:
- working: pneumatically actuated, made on a two-wire system with EBS WABCO
- parking: spring energy accumulators
- hand brake
- Frame:
- Welded, with two spars made of I-beams of variable cross-section, made of high-strength steel
- Trailer suspension is pneumatic.
- At the customer's request semi-trailers can be equipped with single or double-slope coupling.

Specifications

Type of product according to PP RF 616

Trailers (semi-trailers) for cars and trucks, motorcycles, scooters and quadricycles

Payload

11...65 t

Curb weight

3...25 t

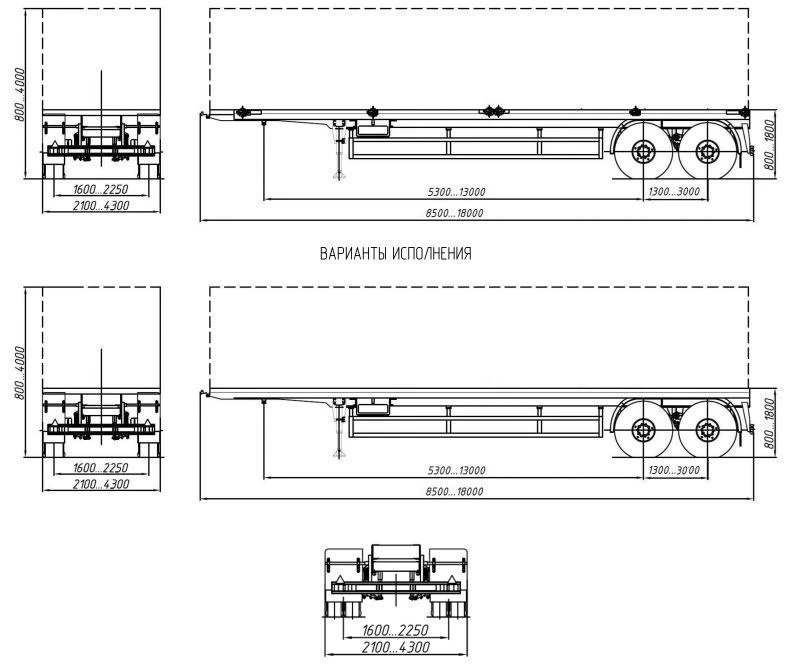

Overall dimensions

8500-18000?2100-4300?800-1800 mm

Load on the SSA

2...36 t

Axle load (1 / 2 -axle)

6-18/6-18 t

Number of axles/tyres

2/4-2/8 pcs

Equipment

Pneumatic suspension system

Additional equipment

* 3.5-inch kingpin * Lift axles (air suspension) * Swivel axles (air suspension) * Optional spare tire * On-demand tandem axles on request * winch * additional support devices * water tank * handwasher * 235/75R22.5 tires
