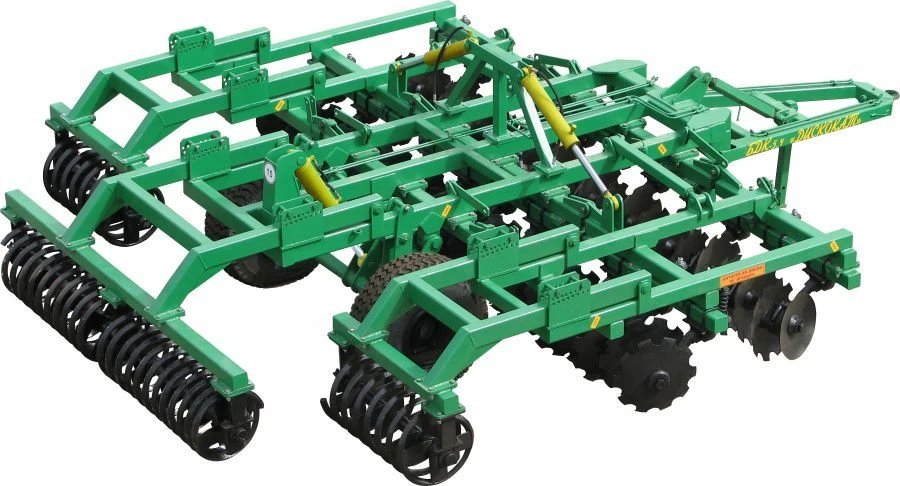

Heavy Disc Harrow BDK-5.4M for Efficient Soil Tillage and Preparation

Disc Harrows

Manufacturer: Petrovskoye RTP OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Disc harrows of BDK "Diskokat" series, hereinafter referred to as the unit, with working elements of increased resource, with the mass per 1 disc, not less than 140 kg, is designed: for surface treatment of compacted soils, weed killing and shredding of plant residues after harvesting thick-stemmed row crops, loosening and preparation of soils, as well as for maintenance of meadows and pastures, for basic cultivation and preparation of soils for sowing in zero minimum, soil-protective and energy-saving technologies. Economical use of the harrow is provided by clad discs of increased resource, which surpass domestic analogues by total resource in 2-2,5 times, as well as by agrotechnical and energy (traction resistance, running stability, crumbling) indicators 11 - 23 %. Increased weight of the harrow (not less than 140 kg per 1 disc) in comparison with domestic analogues allows to achieve reduction of the number of soil tillage to a depth of up to 17 cm. for 1 pass, which in.....

Specifications

Type of product according to PP RF 616

Disc harrows

Weight

7400 kg

Number of implement rows

2 pcs

Working width

5.4 m

Distance between rows

1220 mm

Type

trailed; hydrofic

Productivity in the main time, ha/h

5.4-7

Disk type

spherical; cutout

Number of disks

500-2; 610-21; 660-21

Distance between disks

250 mm

Working depth in two passes

17 cm

Ground clearance, not less

340 mm

Transport speed, not more

Soil ridging

4 cm

Coupled with tractors with a power of at least

300 hp

Overall dimensions in working position

7450x5850x1480

Overall dimensions in transport position

7450x3400x3400

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
