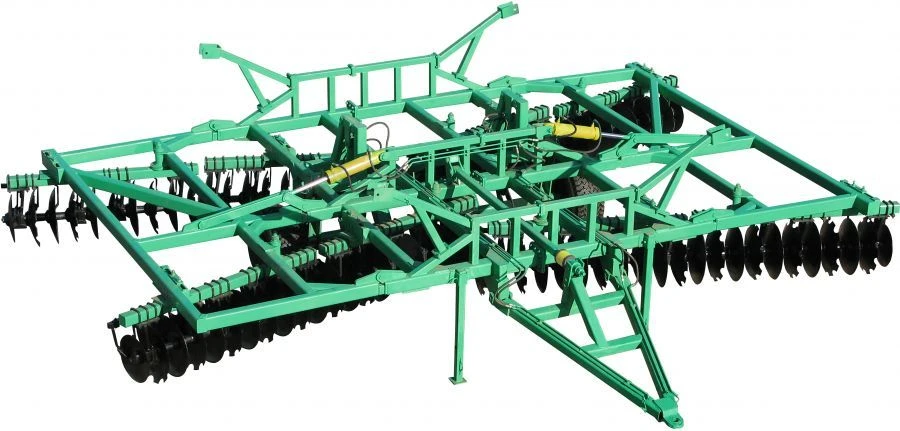

Heavy disc harrow BD-8,0M

Disc Harrows

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Heavy disc harrow BD-9,3M

Description

Disc harrows of BD series with working elements of increased resource, with weight per 1 disc, not less than 115 kg, designed: for cutting clumps after ploughing, processing surfaces of compacted soils, weed killing and shredding of plant residues after harvesting thick-stemmed row crops, loosening and preparation of soils, as well as for maintenance of meadows and pastures, for basic cultivation and preparation of soils for sowing in minimum, soil-protective and energy-saving technologies.
Economical use of the harrow is ensured by clad discs of increased resource, which surpass domestic analogues in terms of total resource by 2-2.5 times, inter-repair resource by 3-5 times, as well as in terms of agrotechnical and energy (traction resistance, running stability, crumbling) indicators by 11-23 %. Working time per 1 disc - not less than 30 ha; increased, in comparison with domestic analogues, harrow weight (not less than 115 kg, falling on 1 disc) allows to achieve a reduction in the number of rev... .

Specifications

Type of product according to PP RF 616 Disc harrows

Distance between rows 1200 mm

Weight 9500 kg

Number of implement rows 2 pc

Working width 8 m

Type trailed; hydrofic

Productivity in the main time, ha/h 7;5-8;2

Disk type spherical; cutout

Number of disks 500-2; 610-2; 660-69

Distance between disks 230 mm

Working depth in two passes 20 cm

Angle of attack of batteries, deg 9/12/15/18/21

Ground clearance, not less 260 mm

Transport speed, not more 15

Soil ridging 4 cm

Coupled with tractors with a power of at least 350 hp

Overall dimensions in working position 7800x8050x2400

Overall dimensions in transport position 7800x6000x3550

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
