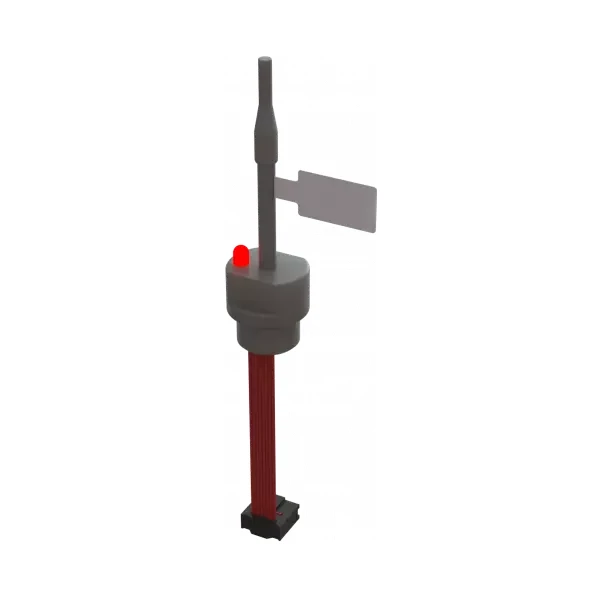

Available for ImportHeat Detector for Fire Detection in Mines - IP 101-4-PR (Safety and Monitoring)
Manufacturer:SPBEX-MINING LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
?? 101-4-PR (?? ????) is designed to detect fires by monitoring the ambient temperature (controlled fire factor), the dynamics of its change and ensuring the transmission of information about its current value on request from the receiving and controlling device of the fire alarm system (FSS) or other compatible device.
Specifications
Explosion protection marking
Ex ia I Ma U
Operating temperature
-20...85 °C
Degree of protection against external influences
IP65 (outside); IP00 (loop side)
Protection class against electric shock
III
Rated voltage of the DC power supply circuit
3.6 V
By measuring zone configuration
Point
Area monitored by detectors
16
Maximum installation height
9 m
Detector class
A1R, A2R, A3R, BR
Thread for body mounting
M20x1.5-6g
Overall dimensions
25,5 x 25,5 x 95 mm
Weight, not more
25 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
