HARROW TOOTHED HARROW BZSH-22

Tooth Harrows

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

HARROW TOOTHED HARROW BZSH-18

Description

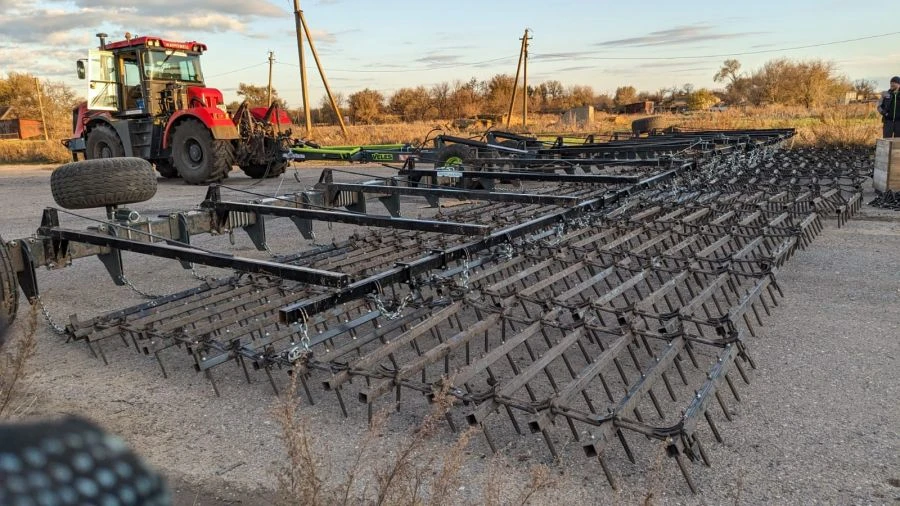

The BZSh-22 harrow is designed to attach sections of profiles with rhombic-shaped teeth, used for distribution and partial crushing of dry stubble, levelling the field surface, crushing large soil clods, destroying weed seedlings, destroying the surface crust at a depth of up to 8 cm, closing the moisture, as well as for the incorporation of chemicals. High productivity of the harrow is achieved due to its high speed, large working width and minimum preparation time. The harrow is easy to operate, the transfer to the trans-port and working position is fully mechanised and can be done by one operator.

Specifications

Type of product according to PP RF 616 Tooth harrows

Length 12350 mm

Width 22000 mm

Height 1225 mm

Capacity, ha/h 26

Working width 22000 m

Material of frame structures Steel

Material of working elements Steel

Harrow type Tooth harrow plume

Working width 22000 m

Number of working bodies 14 pc

Working width 22 m

Depth of treatment 8 cm

Required tractor power 300 hp

Weight 8560 kg

Operating speed B1/B8 2100/900 MHz

Performance 26

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
