Available for Import

Hardware Platform NP-504a (FLAB.465616.007)

Versatile Computing Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

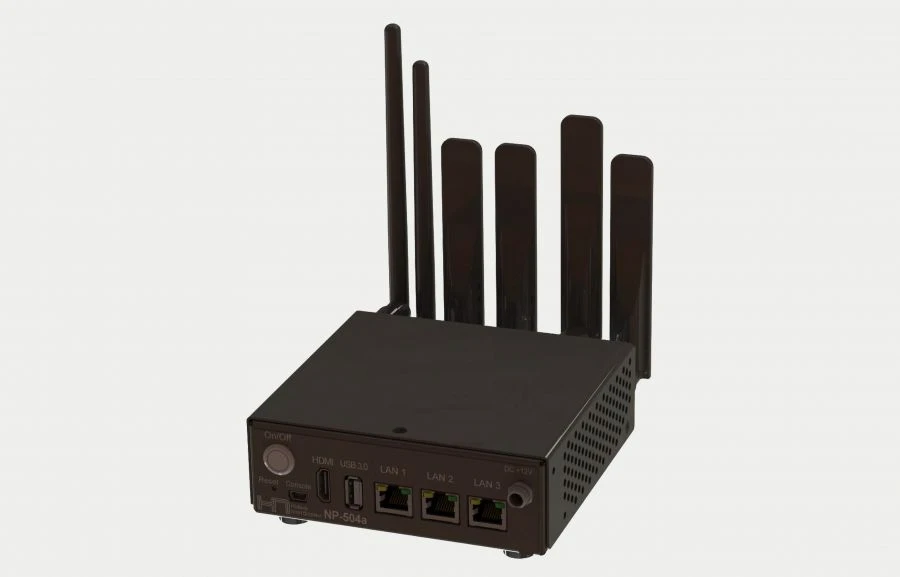

Hardware platform NP-504a. The product is a universal platform with the possibility of installing the operating system family Linux or FreeBSD, acting either as a computing device for a wide range of purposes - both stand-alone and as part of various automated systems, or as a telecommunications platform used in general-purpose networks.

Technical Specifications

Processor	ARM Cortex-A55 (RockChip RK3568)
RAM	2GB LPDDR4 (optional 4GB)
Data storage	1 x SATA M.2 2280/ 2242 SSD 64GB - 2 TB (optional)
Data storage	1 x 8GB - 128GB eMMC (embedded MultiMediaCard)
Data storage	1 x 32MB SPI NOR Flash.
Data storage	1 x SD3.0 (flash memory card) 64GB - 2 TB (optional)
Network interfaces	2 x 10/100/1000 Base-T RJ45
Network interfaces	1 x 10/100/1000/2500 Base-T RJ45
Ports	1 x mini-USB (Console), 1 x USB 3.0, 1 x HDMI
Additional interfaces	2 x SIM-card (1FF)
Wi-Fi module (optional)	Up to 1 x Wi-Fi module M2.2230 Form Factor M2.2230 (PCIe)
LTE modems (optional)	Up to 2 x LTE modems miniPCIE form factor (USB 2.0)
Antennas (optional)	Up to 2 x for connection to M.2 Wi-Fi module, up to 4 x for connection to mini PCIe GSM modules, 2 per module
OS loader	NP-Uboot
OS support	Linux
Form factor (L x W x H, mm)	1U SFF (127 x 132 x 44)
Case color	to order
Installation	On 19" rack brackets, on legs in a horizontal position, in a vertical or other position by threaded holes in the base of the case
Cooling	Passive
Nutrition	External AC adapter with parameters: AC110-240V/DC12V/36-40W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
