Hardware platform ATB-3500 ANPB.421457.001-01

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided

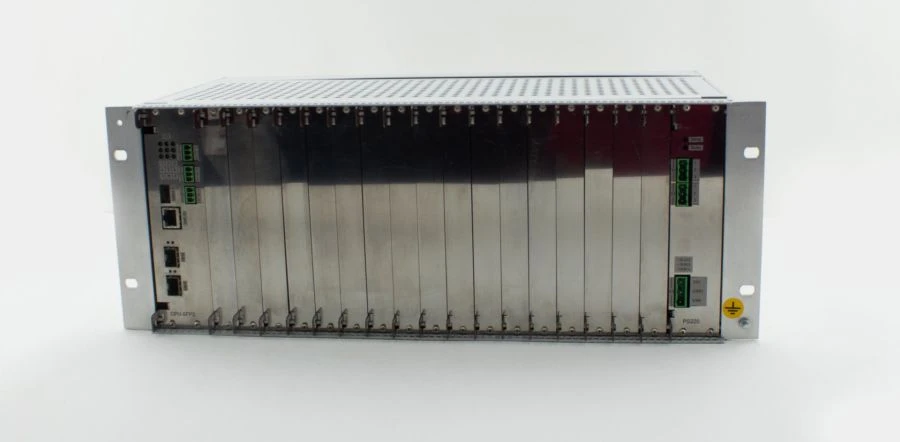

The hardware platform ATB-3500 is an automatic data processing device made in the form of an electronic computing device based on a microprocessor, blade server, used for building software and hardware complexes. The final functionality of the product is determined by a set of expansion modules and software installed in the device. The device is designed, depending on the configuration, for automation of the lower level of ACS, information acquisition and transmission systems, technological information exchange systems of substations of voltage level 35-750 kW.

Technical Specifications

Galvanic isolation Got it
DC overvoltage protection Got it
Dimensions 481,7x197,0x229,6 mm
Weight 4 kg
Ethernet ports 2 x Ethernet 10/100 Mbps (SFP) 1 x Ethernet POE+ 10/100 Mbps (RJ45)
USB Type C Ports 1
Sealing Enclosure, terminal blocks (optional)
Processor ARM Cortex, 4 cores, L2 cache 256KB
Inbuilt memory capacity, GB, not less 16
Installed amount of RAM, GB, not less 4
Wireless communication LTE/3G/2G modem (optional) GPS/GLONASS receiver (optional)
Antennas GSM (optional) GPS/GLONASS (optional)
SIM Two slots for installing SIM cards
Network interfaces 2 x Ethernet 10/100 Mbps (SFP) 1 x Ethernet POE+ 10/100 Mbps (RJ45)
USB interfaces 1 x USB Type C
RS-485 interface 1 x RS-485 (connector - screw terminals)
Indication 9 LEDs (7 are freely programmable)
Discrete outputs 2 (2 groups, 4 outputs). Diagnostic relay
Rated supply voltage 230 V ac 50 Hz 220 V dc
Voltage of galvanic isolation of Ethernet ports, kV, max. 1 kW
Power redundancy Two power supply modules are allowed
Hot swap power supply modules Got it
Power consumption, W, max. 15 W
Switching voltage, V 24...250 V
Switching contact wear resistance at 30 W switching capacity, maximum continuous current of 1 A, cyclo 1000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
