Gyro Compass PGM-C-010 for Maritime Navigation and Directional Accuracy

Gyrocompass PGM-C-010 is designed to determine the ship's course relative to the geographical meridian in the gyrocompass mode or the angle of deviation from a given direction - in the gyroazimuth mode. It is universal and can be used on any vessels of commercial and fishing fleet, as well as on vessels operating in high latitudes. Gyrocompass provides accurate and stable readings at ship's speed up to 70 knots, maximum trim and roll angles up to 45 degrees and latitude up to 85 degrees.

At latitudes above 80 degrees GC operates in gyroazimuth mode. Course information is given in the form of digital (RS232/422), step or synchro signal. The gyrocompass complies with IMO A.424(11) and A.821(19), IEC60945 (2002), IEC61162-1:2000 (E), ISO 8728-2014.

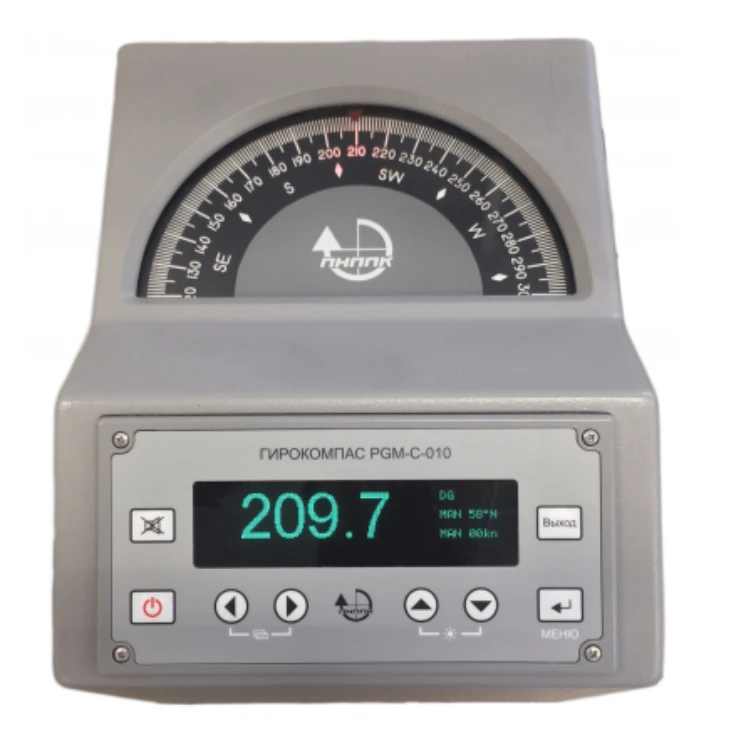

Certified by the Marine Register of the Russian Federation. DNV-GL certificate. Completion: The gyrocompass is a monoblock with a window at the top for the heading scale and an opening for mounting the operator's console.
