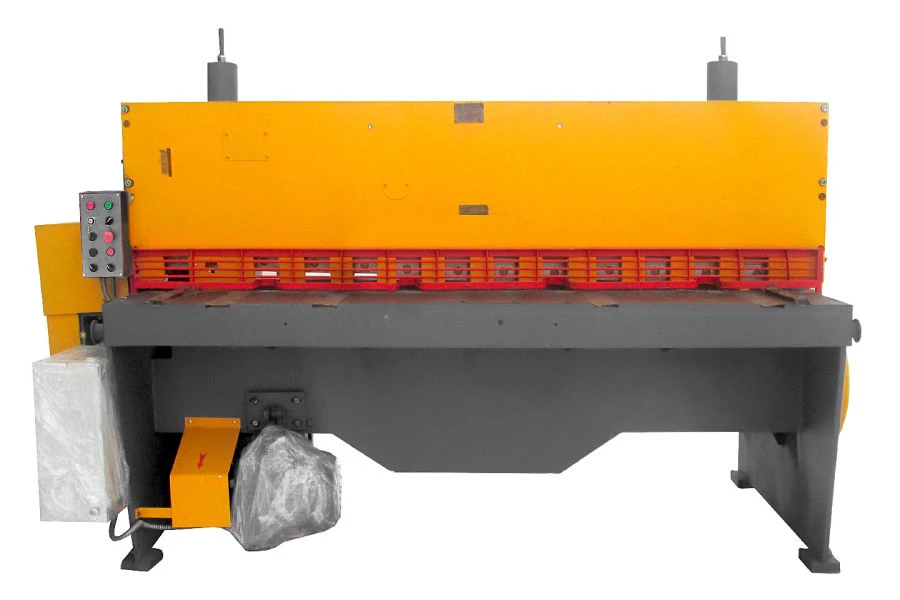

Guillotine crank shears NK3418A.01

Metal Cutting Shears

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Electromechanical sheet shears NK-3418A

Description

Crank guillotine shears NK3418A.01 are designed for cutting sheet metal with a tensile strength of 500MPa and with the largest cross-sectional dimensions of 6,3x3150mm. The shears are widely used in blanking shops of machine-building enterprises, automotive and tractor construction, aircraft construction, shipbuilding, agricultural machinery and other industries, as they have a higher productivity than shears series "ND", due to the lack of preparatory time for readjustment of the cutting mechanism for different thicknesses of cut metal and mechanisation of the rear stop.

Specifications

Type of product according to PP RF 616 Mechanical metalworking shears

Motor power 11 kW

Frequency of knife strokes, idle 60

Maximum thickness of sheets to be cut (steel in <450 Mra) 6.3 mm

Length of sheet cut with stop 500...1000 mm

Overall dimensions (DxWxH) 4030 mm

Weight 6220 kg

Blade stroke frequency: when cutting the largest dimensions of the metal to be cut 22

Number of knife cutting edges 4 pc

Number of electric motors 2 pc
