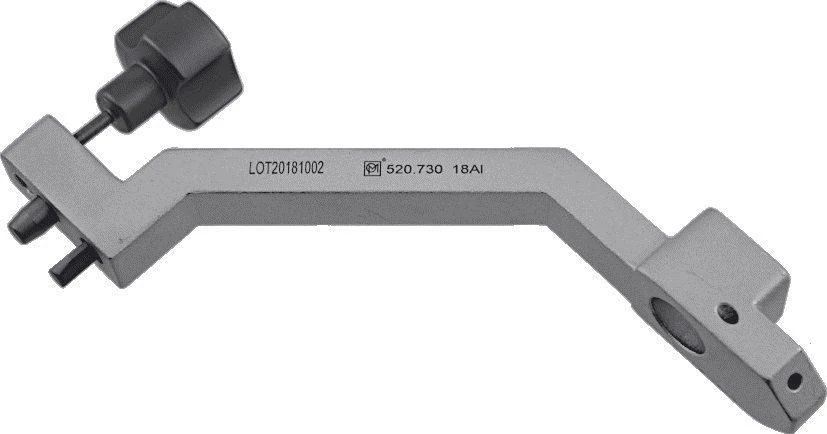

Guide nozzle, article no. 520.730

Instrument for intramedullary osteosynthesis. It is used for the insertion of intramedullary pins. It is made of titanium alloy. Total length - 140 mm. Width - 91 mm. At the end of the nozzle there is a hole with a diameter of 13 mm and perpendicularly located to it 2 holes with a diameter of 2.6 mm, which are at an angle of 45 degrees. The nozzle is supplied complete with a M4 threaded tightening screw with a non-drop fastening pattern, two 6mm diameter pins for connection to the rocker arm. Laser marking of the bore diameter and article. Reusable.
