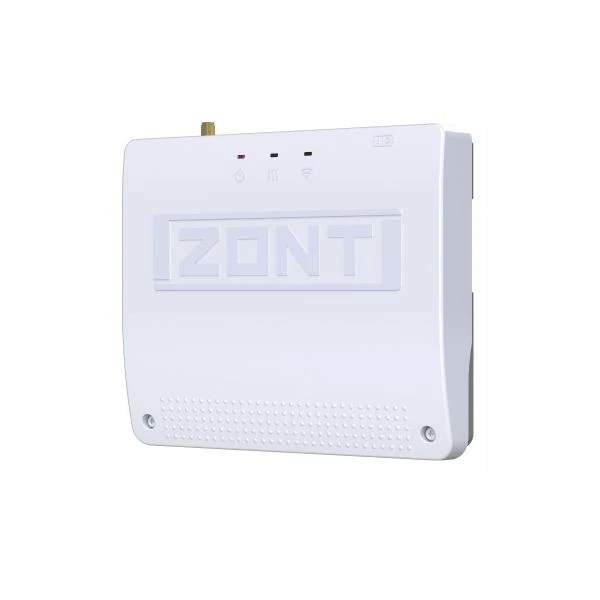

GSM/Wi-Fi controller ZONT SMART 2.0

Heating controller for gas and electric boilers ZONT SMART 2.0 is designed to monitor and control the boiler operation of the heating system. The controller controls the DHW circuit when connected to the boiler via digital bus through an external adapter, provides remote control via web service and mobile application and notifies in case of boiler failure and other emergency situations. Connection via digital interfaces OpenTherm, E-Bus, BridgeNet (Ariston), Navien (via external adapters). Supported interfaces: 1-Wire, K-Line. The controller has 1 relay output (to control the boiler and any other electronic device), 3 universal inputs/outputs, 2 special inputs for NTC sensors and 1 input for digital sensors. Optionally (via radio module) supports 868 MHz radio channel. Control methods: SMS, web service/mobile application, control panel (optional). Included: power supply 12V, GSM-antenna, temperature sensor wired NTC, terminal screws, SIM card, owner's card.
