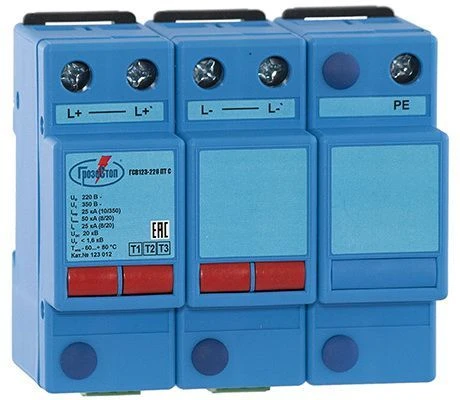

GSK123-220 PT (LT) surge protection device, cat.no.123 113.

Electrical Safety Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

GSK123-220 PT C (LT) surge protection device, cat.no.123 112.

Description

Triple-pole surge arresters of test class I+II+III combined type for DC networks. U0 = 220 V DC. Iimp(10/350)= 25 kA. They are installed within 0A(V) - 1 lightning protection zones (in accordance with GOST R IEC 62305-1 and SO-153-34.21.122). They are intended for protection of equipment in low-voltage DC power distribution systems with air or cable power supply entry.

Specifications

Number of channels 1 pc

Operating temperature -60...80 °C

Dimensions, WxWxH 109x92x64 mm

Rated operating voltage Un 220 V

Surge protection class I+II+III

Housing material Polyamide PA6, UL 94 V-0

Weight 730 g

maximum operating current (max. 315 A
